2400-019RP | 2400 MOTOR | 1/2HP | 230V | Taco

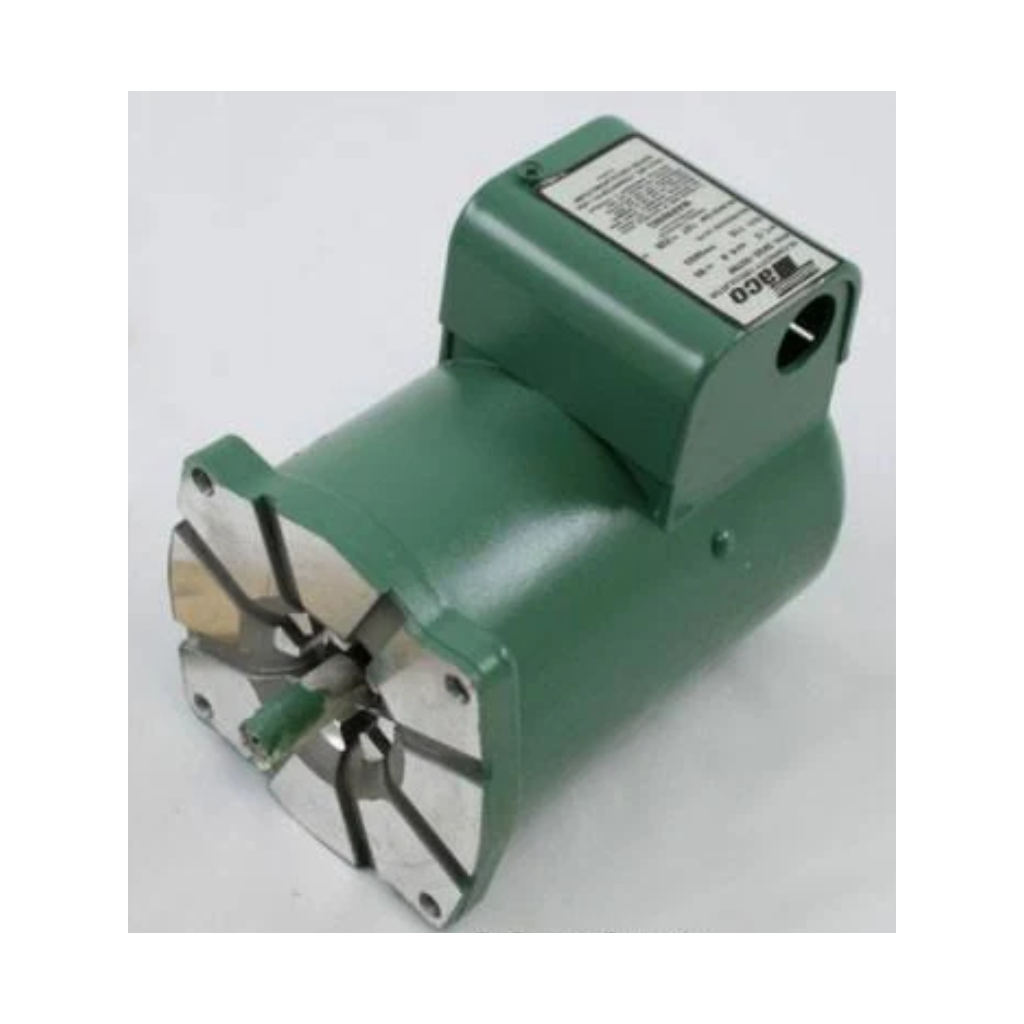

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 2400-019RP

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Taco 2400-019RP Documents

Datasheet More Info

Overview

Details for 2400-019RP

2400 MOTOR | 1/2HP | 230V

For Medium-to-High Flow/Head Application

Taco 2400 Series High Capacity Circulators are specifically designed for quiet, efficient, dependable operation in a wide range of medium to high flow/head hydronic heating, chilled water cooling and hot water recirculation applications. The space saving, close-coupled, maintenance free motor with permanently lubricated, sealed-for-life bearings, stainless steel shaft, Noryl^®impeller and durable, carbon/silicon-carbide mechanical seal provide unmatched reliability. Available in Cast Iron or Stainless Steel construction.

Performance Data

Flow Range: 0 – 90 GPM
Head Range: 0′ – 46′
Max. Fluid Temp: 225°F (107°C)
Min. Fluid Temp: 40°F (4°C)
Max. Working Pressure: 150 PSI
HP: ½, 1/3, 1/6, 1/10
Connection Sizes : ¾” – 3″

Features

Compact, space saving design
Powerful close-coupled, maintenance free motor
Superior efficiency, high starting torque
Permanently lubricated, sealed for life bearings
Rugged ½ ” Stainless Steel Shaft
Carbon/Silicon-Carbide mechanical seal for long life
Universal flange to flange dimensions — Ideal for retrofits
Anti-Condensate design for chilled water
Dual electrical knock-outs
Dual pressure taps, suction/discharge

Applications

Hydronic heating
In-Floor Radiant
Snow Melt
High Pressure Drop Boilers
Outdoor Wood Boilers
Chilled Water Cooling
Geothermal Heat Pumps
Primary/Secondary Loops
Hydro Air Fan Coils
Domestic Water Recirculation Systems
