006-ST4-PNP | 006 Plumb N' Plug Stainless Steel Circulator, w/ Analog Timer & Line Cord, 1/40 HP (3/4" NPT) | Taco
Documents and manuals
Taco 006-ST4-PNP Documents
Overview
Details for 006-ST4-PNP
006 Plumb N' Plug Stainless Steel Circulator, w/ Analog Timer & Line Cord, 1/40 HP (3/4" NPT)
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems

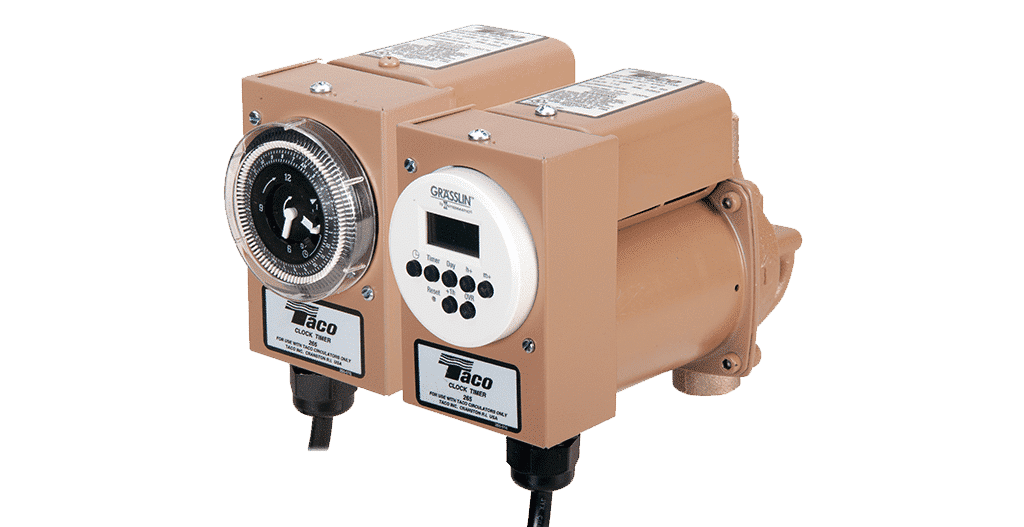

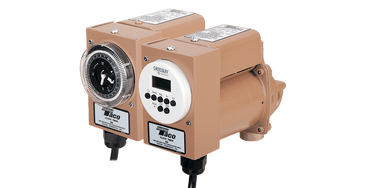

NOTE: Image representative of bronze model of product
Overview
The 003 and 006 Plumb n' Plug® Cartridge Circulators are designed to conserve water, increase comfortand reduce the delivery time of hot water to outlet fixtures by periodically re-circulating hot water throughthe system. An average residence can save up to 25 gallons of wasted water per day. Factory pre-wired 6foot line cord with optional 24 hour analog or 7 day digital programmable clock timers allow for easyinstallation. Simply Plumb it in, then Plug it in. Plumb n' Plug® circulators include all the standard 00®maintenance-free design features-no mechanical seal, self lubricating, replaceable cartridge, quiet, efficientoperation and unmatched reliability
The Taco 006 PNPis designed for systems using 200-400 feet of 3/4" pipe. Installation of isolation valves, pipe insulationand flow checks are recommended.
Features
- Factory Installed 6' Line Cord and 24Hour/15 Minute Interval Analog Timer
- UL Listed
- Quiet, Efficient Operation
- Direct Drive-Low Power Consumption
- Unique Replaceable Cartridge Design-FieldServiceable
- Self Lubricating
- No Mechanical Seal
- Unmatched Reliability-Maintenance Free
Replacement Parts List:
Casing O-Ring: 007-003RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 005-020RP
Specifications
| Item Number | 006-ST4-PNP |
| Brand | Taco |
| Amperage | 0.52 |
| Amps | 0.57A |
| Application | Heating |
| Connection Size | 3/4" |
| Connection Type | NPT |
| Connection | NPT (3/4") |
| Flow Range (GPM) | 0-10 |
| Head Range (ft.) | 0-9 |
| Hertz | 60 |
| Horse Power | 1/40 |
| HP | 1/40 HP |
| Material | Stainless Steel |
| Max Flow (GPM) | 10 |
| Max Flow | 11.5 GPM |
| Max Head (Ft) | 9 |
| Max Head Pressure | 9.5ft |
| Max Pressue | 125 PSI |
| Max Pressure (PSI) | 125 |
| Optional | |
| Phase | 1 |
| Phase | Single Phase |
| Pump Type | Circulator Pump |
| RPM | 3250 |
| RPM | 3250 RPM |
| Series | Series 006 |
| Temperature Range (F) | 40°F to 230°F |
| Type | Dedicated |
| Type | Pump |
| Voltage | 115v |
| Warranty | 3 Year |
