T34C2J | Motor General Purpose 3/4 Horsepower 1725 Revolutions per Minute 115/208-230 Volt Capacitor Start Reversible | Us Motor

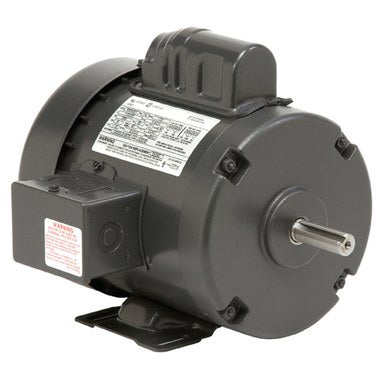

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to T34C2J
Overview Details for T34C2J
**Motor General Purpose 3/4 Horsepower 1725 Revolutions per Minute 115/208-230 Volt Capacitor Start Reversible**
This motor is designed for general-purpose applications and is capable of delivering 3/4 horsepower at 1725 revolutions per minute. It operates on 115/208-230 volts and features a capacitor start for smooth operation. The motor is reversible, allowing it to be used in applications where the direction of rotation needs to be changed.
The motor features a totally enclosed fan-cooled (TEFC) housing, which helps to protect it from dust and other contaminants. It also has a rigid base for easy mounting.
**Key Features:**
* 3/4 horsepower
* 1725 revolutions per minute
* 115/208-230 volts
* Capacitor start
* Reversible
* TEFC housing
* Rigid base
Shop now at Our trusted HVAC store - We offer the best prices and fast shipping for your products!
Motor General Purpose 3/4 Horsepower 1725 Revolutions per Minute 115/208-230 Volt Capacitor Start Reversible
Specifications
| Item Number | T34C2J |
| Brand | Us Motor |
| Amperage | 11.4/5.7-5.7AMP |
| Collection | Motors |
| Duty | Continuous |
| Electrical Type | Capacitor Start |
| Enclosure | Totally Enclosed Fan Cooled |
| Frame Type | 56 |
| Frequency | 60HZ |
| Horsepower | 3/4HP |
| Insulation Class | B |
| Mounting Type | Rigid Base |
| Number of Poles | 4P |
| Number of Speeds | 1SPD |
| Phase | 1PH |
| Product Type | General Purpose |
| Rotation | Reversible |
| Speed | 1725RPM |
| Voltage | 115/208-230V |
