T32C2JH | Motor General Purpose 1-1/2 Horsepower 1725 Revolutions per Minute 208-230 Volt Capacitor Start Clockwise/Counterclockwise | Us Motor

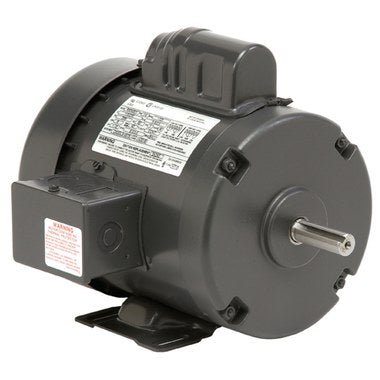

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to T32C2JH
Overview Details for T32C2JH
1-1/2 HP General Purpose Motor by US Motor (T32C2JH): The T32C2JH motor is well-suited for industrial applications with its 1-1/2 horsepower and 1725 RPM. It features a capacitor start, clockwise/counterclockwise rotation, and totally enclosed fan cooled enclosure. The motor operates on 208-230 volts and has a 14.4/8.0-7.2 amp draw. With a 56H frame type, 4P poles, 1SPD speed, and 60HZ frequency, this motor provides reliable and efficient operation. Our trusted HVAC store offers the best prices and fast shipping for your motor needs!
Motor General Purpose 1-1/2 Horsepower 1725 Revolutions per Minute 208-230 Volt Capacitor Start Clockwise/Counterclockwise
Specifications
| Item Number | T32C2JH |
| Brand | Us Motor |
| Amperage | 14.4/8.0-7.2AMP |
| Collection | Motors |
| Duty | Continuous |
| Electrical Type | Capacitor Start |
| Enclosure | Totally Enclosed Fan Cooled |
| Frame Type | 56H |
| Frequency | 60HZ |
| Horsepower | 1-1/2HP |
| Mounting Type | Rigid Base |
| Number of Poles | 4P |
| Number of Speeds | 1SPD |
| Phase | 1PH |
| Product Type | General Purpose |
| Rotation | Clockwise/Counterclockwise |
| Speed | 1725RPM |
| Voltage | 208-230V |
