SX-90V | Expansion Tank Extrol SX Hydronic 44 Gallon 100 Pounds per Square Inch Gauge 1-1/4" FNPT SX-90V Non-ASME for Closed Hydronic Heating Radiant and Chilled Water Systems | Amtrol

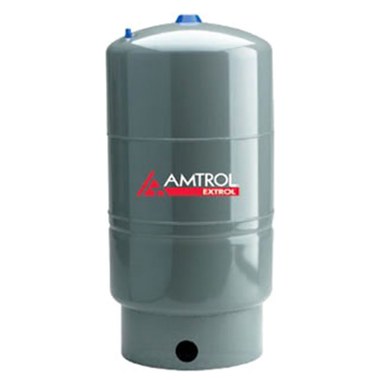

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SX-90V
Documents and manuals
Amtrol SX-90V Documents
Overview
Details for SX-90V
Amtrol Expansion Tank Extrol SX Hydronic 44-Gallon 100 psi SX-90V Non-ASME
Designed for closed hydronic heating, radiant and chilled water systems, the Amtrol Expansion Tank Extrol SX Hydronic features a 44-gallon capacity and a 100 psi gauge. Its 1-1/4" FNPT steel system connection allows for easy installation into existing systems.
Built with a 12 psig factory precharge, this expansion tank accommodates expanded water as the system temperature rises, reducing pressure build-up and maintaining system integrity. Its projection welded air valve ensures proper air release during filling.
With its non-ASME construction, this expansion tank is suitable for use with high-output boilers up to 1,500,000 BTU's. It stands at 22 inches long, 22 inches wide, and 36 inches high, making it a compact and efficient solution for controlling system pressure in various industrial and commercial applications.
Shop Our trusted HVAC store for the best prices and fast shipping on expansion tanks and other essential components for your HVAC systems.
Expansion Tank Extrol SX Hydronic 44 Gallon 100 Pounds per Square Inch Gauge 1-1/4" FNPT SX-90V Non-ASME for Closed Hydronic Heating Radiant and Chilled Water Systems
Specifications
Item Number | SX-90V |
Brand | Amtrol |
Application | Closed Hydronic Heating; Radiant and Chilled Water Systems |
Collection | Expansion Tank Parts & Accessories |
Diaphragm Material | Butyl/EPDM |
Height | 36IN |
Inlet/Outlet Connection | 1-1/4IN FNPT |
Length | 22IN |
Material | Steel |
Part Number | SX-90V |
Precharge Pressure | 12PSIG |
Pressure | 100PSIG |
Product Type | Hydronic |
Standard | Non-ASME |
Tank Capacity | 44GAL |
Temperature | 240DEG F |
Width | 22In |
