M3ST120R5A | Storage Tank Commercial Jacketed ASME 119 Gallon 150 Pounds per Square Inch 2 Inch NPT | Bradford White

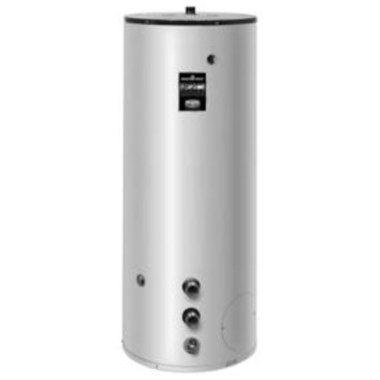

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to M3ST120R5A
Documents and manuals
Bradford White M3ST120R5A Documents
Overview
Details for M3ST120R5A
Storage Tank Commercial Jacketed ASME 119 Gallon 150 Pounds per Square Inch 2 Inch NPT[SKU: M3ST120R5A]
The Bradford White SPE-M3ST120R5A is a storage tank designed for commercial applications. It has a capacity of 119 gallons and can withstand pressures up to 150 pounds per square inch (psi). The tank is jacketed, which provides additional insulation and helps to maintain the water temperature. It features a rear connection and a hand hole cleanout for easy inspection and maintenance.
Additional Features:
- Vitraglas lining for added durability
- 2-inch Non-CFC foam insulation for reduced heat loss
- Water connections: 2-inch NPT factory installed true dielectric fittings extend water heater life and eases installation
- Two protective magnesium anode rods for increased corrosion resistance
- 3/4-inch NPT aquastat fitting
- Low restriction brass drain valve
- Designed for storage of potable water up to 180 degrees Fahrenheit
- 300 psi test pressure
Shop now at Our trusted HVAC store for the best prices and fast shipping on all your industrial supply needs!
Storage Tank Commercial Jacketed ASME 119 Gallon 150 Pounds per Square Inch 2 Inch NPT
Specifications
Item Number | M3ST120R5A |
Brand | Bradford White |
Diaphragm Material | Vitraglas |
Height | 62-1/2IN |
Inlet/Outlet Connection | 2IN NPT |
Material | Steel |
Pressure | 150PSI |
Product Type | Commercial Jacketed ASME |
Tank Capacity | 119GAL |
Tank Dimensions | 28x62-1/2IN |
Temperature | 180DEG F |
Width | 28IN |
