D488 | Motor Condenser Fan 1/20 Horsepower 1550 Revolutions per Minute 115/208-230 Volt 5 Inch Permanent Split Capacitor | Fasco Motors

Brand: Fasco MotorsSKU: D488

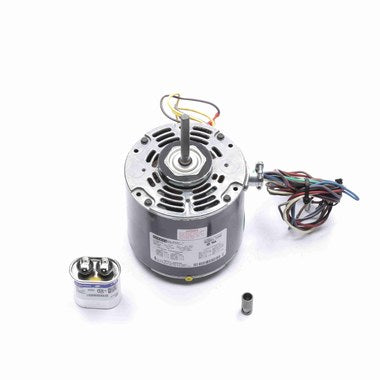

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to D488

Jump to: Overview & Specifications Reviews

Overview Details for D488

Fasco Motors' Condenser Fan Motor D488 is an exceptional choice for industrial applications, with its robust construction and efficient performance. Featuring a horsepower of 1/20 and a speed of 1550 RPM, this motor operates efficiently at 115/208-230 volts. It utilizes a permanent split capacitor and boasts a 5-inch diameter. With its automatic overload protection, 4 poles, and resilient ring mounting type, this motor ensures reliable operation. Backed by Fasco Motors' reputation for quality, the D488 is ideal for powering fan motors in industrial settings. For the best prices and fast shipping, choose Our trusted HVAC store!

Motor Condenser Fan 1/20 Horsepower 1550 Revolutions per Minute 115/208-230 Volt 5 Inch Permanent Split Capacitor

Specifications

Item Number	D488
Brand	Fasco Motors
Amperage	1.2/0.6AMP
Bearing Type	Sleeve
Collection	Fan Motors
Diameter	5IN
Duty	Continuous
Electrical Type	Permanent Split Capacitor
Enclosure	Open Air Over
Frame Type	42
Frequency	60HZ
Horsepower	1/20HP
Insulation Class	B
Mounting Type	Resilient Rings
Number of Poles	4
Number of Speeds	1
Overload Protection	Automatic
Phase	1
Product Type	Condenser Fan
Rotation	Reversible
Shaft Type	Flat
Speed	1550RPM
Voltage	115/208-230V

Documents: D488
