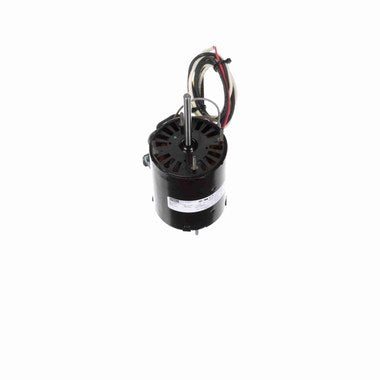

D404 | Motor OEM Replacement 1/10 Horsepower 3200 Revolutions per Minute 208-230 Volt 3.3 Inch Permanent Split Capacitor | Fasco Motors

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to D404

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Fasco Motors D404 Documents

Specification Sheet

Overview

Details for D404

For reliable motor replacement, the Fasco Motors D404 offers superior performance with its 1/10 horsepower and 3200 revolutions per minute. This permanent split capacitor motor operates on 208-230 volts and features a 3.3-inch diameter. Designed for durability, it has an open-air over enclosure and thermally protected insulation. This versatile motor is ideal for applications requiring reversible rotation, with a speed of 60 hertz and a thermally protected insulation class B rating. Its extended studs and flat shaft type provide secure mounting. Trust Fasco Motors D404 for efficient and reliable performance in industrial settings. Our trusted HVAC store offers competitive prices and swift delivery for your motor needs.

Motor OEM Replacement 1/10 Horsepower 3200 Revolutions per Minute 208-230 Volt 3.3 Inch Permanent Split Capacitor

Specifications

Item Number	D404
Brand	Fasco Motors
Amperage	.8AMP
Bearing Type	Ball
Diameter	3.3IN
Duty	Air Over
Electrical Type	Permanent Split Capacitor
Enclosure	Open Air Over
Frequency	60HZ
Horsepower	1/10HP
Insulation Class	B
Mounting Type	Extended Studs
Number of Poles	2
Number of Speeds	1
Overload Protection	Thermally Protected
Phase	1
Product Type	OEM Replacement
Rotation	Reversible
Shaft Type	Flat
Speed	3200RPM
Voltage	208-230V
