D1144 | Motor OEM Replacement 1/25 Horsepower 1200 Revolutions per Minute 115 Volt 3.3 Inch Permanent Split Capacitor | Fasco Motors

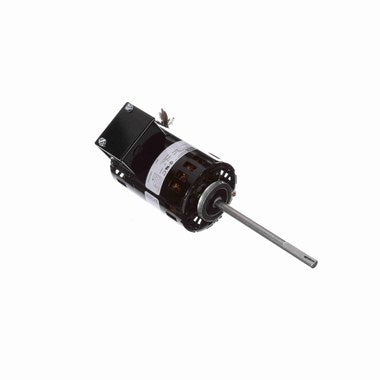

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to D1144

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Fasco Motors D1144 Documents

Specification Sheet

Overview

Details for D1144

Fasco Motor's SPE-D1144 motor is a direct replacement OEM for industrial applications. Its Permanent Split Capacitor (PSC) design delivers 1/25 horsepower at 1200 RPM, with an operating voltage of 115V. With a diameter of 3.3 inches, this motor is compact in size and designed with an open-air-over enclosure for ventilation. Key features include a thermally protected construction, sleeve bearings, and a 60HZ frequency. The SPE-D1144 is compatible with clockwise shaft end rotation, resilient ring mounting, and a flat shaft type. Midwest Supply is your source for this and many other fan motors!

Motor OEM Replacement 1/25 Horsepower 1200 Revolutions per Minute 115 Volt 3.3 Inch Permanent Split Capacitor

Specifications

Item Number	D1144
Brand	Fasco Motors
Amperage	1.10AMP
Bearing Type	Sleeve
Collection	Fan Motors
Diameter	3.3IN
Duty	Air Over
Electrical Type	Permanent Split Capacitor
Enclosure	Open Air Over
Frequency	60HZ
Horsepower	1/25HP
Insulation Class	B
Mounting Type	Resilient Rings
Number of Poles	6
Number of Speeds	3
Overload Protection	Thermally Protected
Phase	1
Product Type	OEM Replacement
Rotation	Clockwise Shaft End
Shaft Type	Flat
Speed	1200RPM
Voltage	115V
