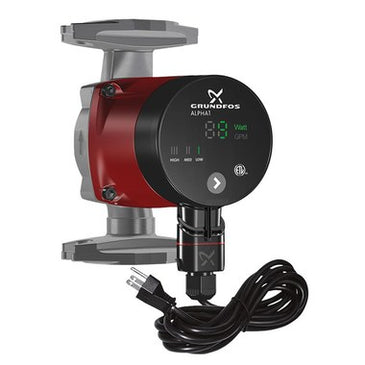

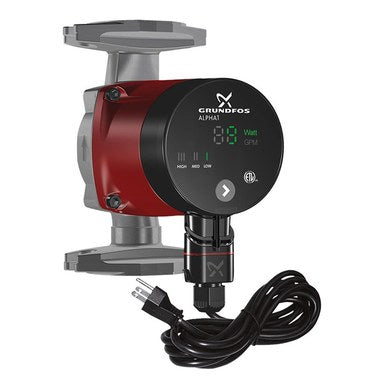

99287259 | Circulator Pump Alpha1 Rotated ECM 115V Cast Iron Flanged 3 Speed 15-55FR | Grundfos Circulators
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 99287259
Overview Details for 99287259
**Circulator Pump Alpha1: Power and Efficiency for Your Heating and Cooling Systems**
The Grundfos Circulator Pump Alpha1 15-55FR is a high-performance pump designed for various commercial and industrial heating applications. This robust pump boasts a cast iron body for durability and longevity.
Featuring three speeds, it provides flexibility in flow rate and head pressure, enabling it to adapt to different system requirements. The rotated ECM (electronically commutated motor) ensures energy efficiency, reducing operating costs and environmental impact.
With a 1/16HP motor, this pump delivers a maximum flow rate of 21GPM and a head range of up to 18.05FT. It handles a wide temperature range from 35.6 to 230 degrees Fahrenheit, making it suitable for both heating and hot water recirculation systems.
The Alpha1 15-55FR features flanged end connections for secure and reliable pipe attachment. Its compact design allows for easy installation and maintenance, while the terminal box provides convenient access to electrical connections.
Our trusted HVAC store offers the Grundfos Circulator Pump Alpha1 15-55FR at competitive prices with fast shipping. As your trusted supplier for industrial and engineering products, we guarantee quality and reliability. Contact us today for a quote and experience the power and efficiency of Grundfos pumps in your operations.
Circulator Pump Alpha1 Rotated ECM 115V Cast Iron Flanged 3 Speed 15-55FR
Specifications
Item Number | 99287259 |
Brand | Grundfos Circulators |
Application | Commercial Heating; Domestic Hot Water Recirculation; Domestic Heating; District Heating; Industrial Heating |
Casing Material | Cast Iron |
Collection | Circulator Pumps |
End Connection Size | 1-1/2IN |
End Connection | Flanged |
Flow Rate | 21GPM |
Head Range | 18.05FT |
Horsepower | 1/16HP |
Maximum Pressure | 150PSI |
Options | Terminal Box |
Part Number | 15-55FR |
Product Type | Rotated ECM 115V |
Speed | 3SPD |
Temperature | 35.6-230DEG F |
