95ALF20501 | 95ALF-100 Series 1" Lead Free Two-Piece Solder End Full Port Brass Stop and Waste Ball Valve | Apollo Products

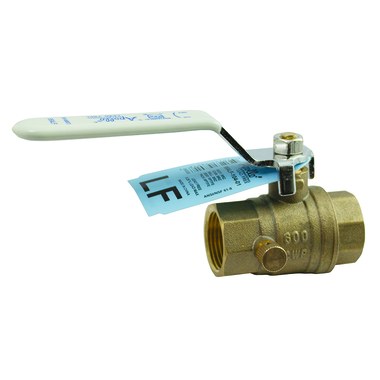

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 95ALF20501

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Apollo Products 95ALF20501 Documents

Installation Manual Specification Sheet

Overview

Details for 95ALF20501

The Apollo 95ALF lead free forged brass stop and waste ball valves are ideal for plumbing or hydronic systems where draining is required. The valves are IAPMO listed and ANSI 3rd party certified Lead Free. This 1" two-piece, full port stop and waste ball valve features corrosion-resistant brass construction with a standard lever handle and sweat connections. Rated for 600 CWP (psig).

Lead free materials and certification
Two-piece, full port design
Blow-out proof stem design
Adjustable stem packing nut
Drain port with finger tight shut-of
Fast, quarter-turn operation
IAPMO IGC 159
ANSI /NSF 61-2011
ANSI / NSF 372 (0.25% Lead Max)

95ALF-100 Series 1" Lead Free Two-Piece Solder End Full Port Brass Stop and Waste Ball Valve

Specifications

Item Number	95ALF20501
Brand	Apollo Products
Collection	Ball Valves
End Connection	Solder
End to End Distance	3.53IN
Handle Type	Lever
Material	Lead Free Brass
Port Type	Full Port
Pressure	600PSI CWP
Product Type	2-Piece Stop and Waste
Seal Material	PTFE
Size	1IN
Temperature	32 to 250DEG F
