6PLF-200-01 | 6PLF Series Lead Free 3" Cast Iron Class 125 Flanged Ball Valve | Apollo Products

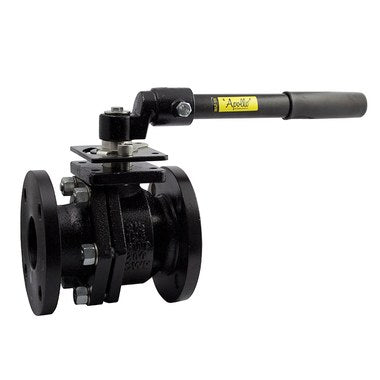

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 6PLF-200-01
Overview Details for 6PLF-200-01
**Apollo Products 6PLF Series Lead Free 3" Cast Iron Class 125 Flanged Ball Valve**
The Apollo 6PLF Series Class 125 cast iron ball valve is engineered for superior performance in potable water and HVAC applications. This 3" valve boasts an FDA-approved epoxy coating, stainless steel ball and stem construction, and NSF 61 certification for lead-free compliance.
With a maximum operating torque of 744 in-lbs, this compact and cost-effective valve offers ease of actuation and space efficiency. Its ISO 5211 mounting pad ensures simple integration, and removable handles allow for installation in confined areas. The full port design minimizes flow restriction, and the lockable handle provides added safety.
Key Features:
* Lead-free cast iron body with FDA-approved epoxy coating
* Stainless steel ball and stem for durability
* PTFE seats for reliable sealing
* 200 psi CWP, 125 psi SWP
* Operating temperature: -35 to 353°F
* Maximum vacuum service: 29" Hg
Applications:
* Potable water systems
* Heating and cooling systems
* Industrial process lines
* General-purpose fluid handling
Our trusted HVAC store offers the best prices and fast shipping for your industrial supply needs. Contact us today for expert advice and to order the Apollo Products 6PLF Series Lead Free 3" Cast Iron Class 125 Flanged Ball Valve!
6PLF Series Lead Free 3" Cast Iron Class 125 Flanged Ball Valve
Specifications
Item Number | 6PLF-200-01 |
Brand | Apollo Products |
End Connection | Flanged |
End to End Distance | 8.00IN |
Handle Type | Lever |
Material | Lead Free Cast Iron |
Port Type | Full Port |
Pressure | 200CWP/125SWP |
Product Type | Class 125 |
Seal Material | PTFE |
Size | 3IN |
Temperature | 353DEG F |
