Documents: VZ3V32C100

Datasheet More Info

VZ3V32C100 | Wear part, fan for variable speed drive, Altivar 32, Altivar Machine 320, from 5.5 to 7.5kW, three phase | Square D

Brand: Square DSKU: VZ3V32C100

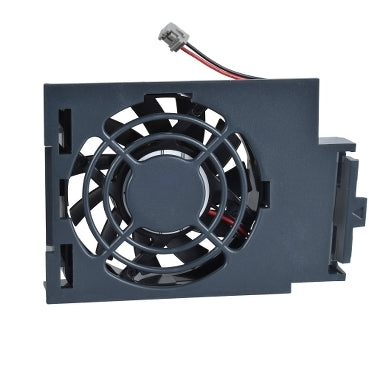

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VZ3V32C100

Jump to: Overview & Specifications Reviews

Overview Details for VZ3V32C100

Wear part, fan for variable speed drive, Altivar 32, Altivar Machine 320, from 5.5 to 7.5kW, three phase

This product is a wear part for Drive Altivar 32 and Altivar 320. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives ATV32 from 5.5kw to 7.5kw and a rated voltage from 380V to 500V, for Altivar 320 from 5.5kw to 7.5kw and a rated voltage from 380V to 600V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 23cm (width) x 17cm (Length) x 7cm (Height) and weighs 280g. This power fan is compatible with ATV320U55M3 to U75M3C, ATV320U55N4B to U75N4B, ATV320U55N4C to U75N4C, ATV320U55S6C to U75S6C. This kit include 1 Fan, 1 Mounting bracket, 1 Instruction sheet.

Specifications

Accessory / Separate Part Type: Fan kit
Product or Component Type: Fan
Accessory / separate part category: Cooling accessory
Range Compatibility: Altivar 32, Altivar 320
Accessory / separate part destination: Variable speed drive
Kit composition: Fan, Mounting bracket, Instruction sheet
product compatibility: Variable speed drive ATV32 5.5 kW, 380...500 V three phase, Variable speed drive ATV32 7.5 kW, 380...500 V three phase, Variable speed drive ATV320...B 5.5 kW, 380...500 V three phase, Variable speed drive ATV320...B 7.5 kW, 380...500 V three phase, Variable speed drive ATV320...C 5.5 kW, 200...240 V three phase, Variable speed drive ATV320...C 7.5 kW, 200...240 V three phase, Variable speed drive ATV320...C 5.5 kW, 525...600 V three phase, Variable speed drive ATV320...C 7.5 kW, 525...600 V three phase
Category: 22149-ATV320 ACCESSORIES
Discount Schedule: CP4B
GTIN: 3606480517983
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.76 in (7.0 cm)
Package 1 Width: 9.06 in (23.0 cm)
Package 1 Length: 6.69 in (17.0 cm)
Package 1 Weight: 9.88 oz (280.0 g)
Unit Type of Package 2: P06
Number of Units in Package 2: 56
Package 2 Height: 28.94 in (73.5 cm)
Package 2 Width: 23.62 in (60.0 cm)
Package 2 Length: 31.50 in (80.0 cm)
Package 2 Weight: 63.23 lb(US) (28.68 kg)
