EP-321 | Pulse Width (PWM) Input | Floating Point Input to Pressure Output Interface Module | 0 - 20 psig | MAMAC Systems

24VAC/DC 0/30# E-P Transducer: MAMAC Systems [sku]The MAMAC Systems E-P Transducer [sku] is a robust and reliable transducer designed to accurately measure and convert electrical signals for industrial applications. With its superior performance and advanced features, this transducer is an essential tool for engineers and maintenance professionals. Key Features and Benefits: Voltage Range: The MAMAC E-P Transducer operates on a versatile voltage range of 24VAC/DC, providing compatibility with various electrical systems. Output Signal: It provides a 0/30# output signal, allowing for precise measurement and monitoring of electrical parameters. Compact Design: Its compact design makes it suitable for integration into space-constrained setups or within control panels. Industrial Applications: This transducer is designed for a wide range of industrial applications, including power distribution, process control, and automation systems. By utilizing the MAMAC Systems E-P Transducer [sku], engineers and maintenance professionals can enhance the accuracy and efficiency of their operations. Our HVAC supply store offers the best prices and fast shipping for this exceptional MAMAC Systems product. Order now and experience the difference in quality and performance!

•  Accepts universal 24 VAC/VDC triac or dry ... contact input
• Universal 24VAC/VDC supply voltage
• High air flow capacity
• Field adjustable pulse width and interval
• Field programmable travel time
• Compensates for system volume and leaks
• Precision pressure gauge for branch line ....indication • Conforms to EMC and RoHS standards

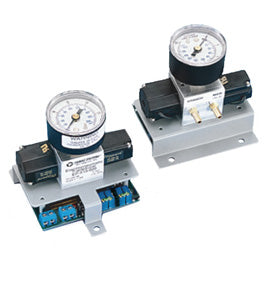

EP-321 accepts a tristate input and provides an output pressure pulse train with a field adjustable pulse width and interval. As a result, any triac or contact closure can be converted into a desired actuator travel. By adjusting the pulse width and interval, the actuator travel time can be field programmed from as low as five seconds to 25 seconds based on system volume. The EP-321 can operate over 0–20 psig pressure range and has negligible input/output differential. The EP-321 has quiet low wattage poppet valves, rugged aluminum manifold, brass barb fittings and a unique steel chassis which substantially reduces the overall size. A precision gauge is provided for the branch line pressure. The above features and a liberal five year warranty make the EP-321 the highest performance and most reliable transducer in the industry
