616KD-B-03 | Differential pressure transmitter | 0-5" w.c. | +/- 1.0% FS | 4-20 mA | Dwyer

Differential pressure transmitter, 0-5" w.c., +/- 1.0% FS, 4-20 mA

Dwyer | 616KD-B-03

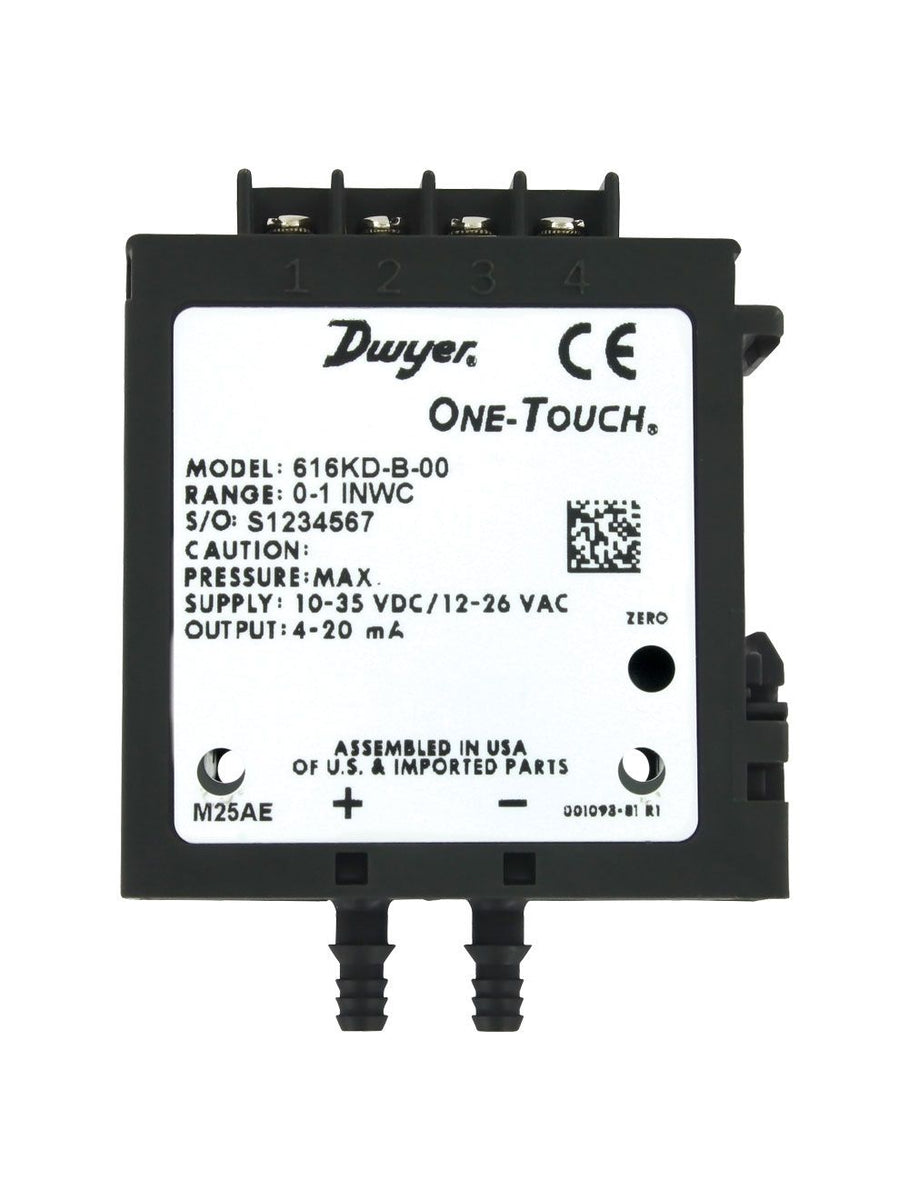

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 616KD-B-03

Overview

Details for 616KD-B-03

See catalog product page for full listing

Differential pressure transmitter | 0-5" w.c. | +/- 1.0% FS | 4-20 mA

Series 616KD Differential Pressure Transmitter

One-Touch® Digital Push-Button Calibration Technology, ±0.25, ±1, or ±2% Accuracy

The Series 616KD Differential Pressure Transmitters with One-Touch® Digital Push- Button Calibration Technology are designed for simplicity, making them the ideal choice for installers and maintenance professionals. These instruments not only alleviate cumbersome turn pots typically found in most transmitters, but eliminate entirely the need to span the instruments during calibration. With a single digital push button, both ZERO AND SPAN are calibrated properly, nothing else is required. No additional reference pressure sources or separate calibration devices are necessary.

NIST CALIBRATION available in Product Configurator.

**For additional ranges, see Series 616KD-LR Differential Pressure Transmitter - Low Ranges.

Product Applications

  • Air handlers
  • Duct pressure
  • Variable air volume
  • Filter monitoring
  • Simple calibration push-button sets back zero and span, saving time installing and over the service life
  • Cost effective and compact device suitable for OEM applications where space, simplicity, and value are key
  • Ranges and accuracy selection cover a wide range of applications minimizing components and determining standardizing on design
  • Optional 1/8" NPT process connection allows for use with metal barbed fittings or compression fittings for use with metal tubing

Specifications

Series
616KD Differential Pressure Transmitter
Service
Air and non-combustible; compatible gases.
Wetted Materials
Consult factory.
Accuracy
616KD-A: ±0.25% FS; 616KD-B: ±1% FS; 616KD: ±2% FS.
Stability
±1% FS/year.
Temperature Limits
0 to 140°F (-17.8 to 60°C).
Compensated Temperature Range
20 to 122°F (-6.67 to 50°C).
Pressure Limits
2 psig (ranges 5" w.c. or lower); 5 psig (ranges 10 to 40" w.c.).
Thermal Effect
616KD-A: ±0.02% FS/°F; 616KD-B: ±0.04% FS/°F; 616KD: ±0.06% FS/°F; includes zero and span.
Power Requirements
4-20 mA output: 10 - 35 VDC (2 wire) or 12-26 VAC (4 wire); 5V output: 10 - 35 VDC (3 wire) or 12-26 VAC (4 wire); 10V output: 13 - 35 VDC (3 wire) or 12-26 VAC (4 wire) for 616KD A and B. 16 to 36 VDC (2 or 3 wire): 20 to 28 VAC (3 wire) for 616KD.
Output Signal
4 to 20 mA or option with field selectable 0 to 10; 0 to 5; 2 to 10; 1 to 5 V.
Zero and Span Adjustments
Push button.
Loop Resistance
4 to 20 mA output (DC): 0 to 1250 Ω max. Rmax = 50(VpsDC -10) Ω; 4 to 20 mA output (AC): 0 to 1200 Ω max. Rmax = 50(1.4 VpsAC -12) Ω; Voltage output: 5 KΩ minimum.
Current Consumption
24 mA max for 616KD A and B. 21 mA max for 616KD.
Electrical Connections
Screw-type terminal block.
Process Connections
Barbed; dual size to fit 1/8" & 3/16" (3 mm and 5 mm) IDrubber or vinyl tubing.
Enclosure Rating
NEMA 1 (IP20).
Mounting Orientation
Vertical with pressure connections pointing down.
Weight
1.8 oz (51 g).
Agency Approval
CE; UL Standard 2043.
