6050B4000 | Ecocirc Wireless Potable Hot Water Pump Kit (3/4" MPT x FPT) | Bell & Gossett
Ecocirc Wireless Pump Kit

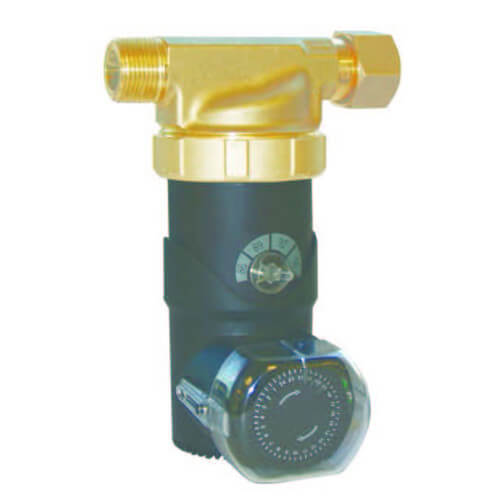

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 6050B4000
Documents and manuals
Bell & Gossett 6050B4000 Documents
Overview
Details for 6050B4000
Ecocirc Wireless Potable Hot Water Pump Kit (3/4" MPT x FPT)
The ecocirc wireless is a potable hot water recirculation kit (a pump and valvecombination) for instant supply of hot water supply throughout the entire house.The ecocirc pump is installed on the supply side of the hot water source and themixing valve under the sink farthest away from the hot water source. The pumpand valve are in constant wireless communication.The desired water temperature at the valve is set directly on the pump with thethermostat dial. The water temperature is constantly checked by the valve and thetemperature values are sent to the pump. At approximately 5°F below the desiredwater temperature, the pump will begin to circulate hot water. This circulation willopen the valve for hot water to cross into the cold water line, which creates a returnloop back to the hot water source. When the desired temperature is reached, thepump will stop circulating. This is to prevent continuous circulation.
Features & Benefits:
- ecocirc series pump with energy efficientECM based permanent magnet motor
- Operates on as little as 20 watts
- Operated via wireless communication
- Temperature and Timer controlled
- Optional Push Button Start
- Valve operates using two AA batteries
- No electrical outlet required under the sink
- No recirculation line needed
Specifications
Item Number | 6050B4000 |
Brand | Bell & Gossett |
Application | Domestic Hot Water |
Connection Size | 3/4" |
Connection Type | MPT x FPT |
Hertz | 60 |
Installation Type | Under Sink |
Lead Free | Yes |
Material | Brass |
Max Pressure (PSI) | 145 |
Max. Working Temp (F) | 203°F |
Phase | 1 |
Power Consumption | 20W |
Pump Type | Recirculating Pumps |
Series | Ecocirc e3 Domestic Hot Water Pumps |
Type | Circulator |
Type | Dedicated |
Type | Pump |
Voltage | 115v |
Wireless | Yes |
