TJBDR02 | Temp | VAV | 4 in SS Probe w/Plt | 10kT2 | 8FtQD | Veris

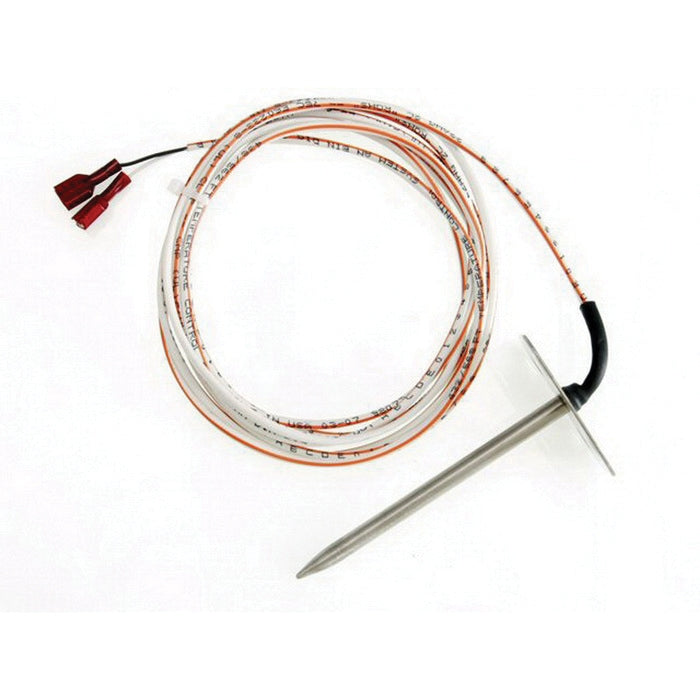

Stainless Steel Probe 4 in 10 kOhm T2 Thermistor VAV Discharge NTC Temperature Sensor, 1/4 in Quick Disconnects with 8 ft Leadwires
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TJBDR02
Documents and manuals
Veris TJBDR02 Documents
Overview
Details for TJBDR02
Temp | VAV | 4 in SS Probe w/Plt | 10kT2 | 8FtQD
Description
The TJ Series temperature sensors are highly accurate and cost effective, with trouble-free installation. The sensor is encased in a sturdy corrosion-resistant stainless steel probe. A variety of RTD/ thermistor sensor and probe length options are available for maximum versatility in applications.
APPLICATIONS
- VAV reheat boxes
- Dual duct boxes
- Fan coils
- Prove that the hot water valve or electric heat is functioning properly
- Check individual reheating stages
- Check for hot water valve leaks
- Determine if damper actuators are functioning on dual duct boxes
Specifications
Item Number | TJBDR02 |
Brand | Veris |
Application Zone | Plant Room |
Application | VAV Box |
Brand | Veris |
Dimension Depth | 0.5" (13 mm) |
Dimension Height | 2" (51 mm) |
Dimension Probe Diameter | 0.25" (6 mm) |
Dimension Probe Length | 4" (102 mm) |
Dimension Width | 1.5" (38 mm) |
Electrical Wiring Size | 22 AWG (0.32 mm²) |
Enclosure Material | Stainless Steel |
Measurement Type | Temperature |
Model | TJBDR02 |
Mounting | Duct |
Operating Temperature | -13 - 221 °F (-25 - 105 °C) |
Outputs | Resistive output |
Product Type | Sensor |
Range | TJ |
Sensor Configuration | Duct Only |
Sensor Length | 4 inch |
Sensor | Temperature |
Temperature Calibration Certificate | 2 pts |
Temperature Measurement Accuracy | ±1.8 °F (±1.0 °C) |
Temperature Measurement Range | -58 - 302 °F (-50 - 150 °C) |
Temperature Sensor Type | 10k Ohm Type 2 Thermistor |
Warranty | 5 years |
