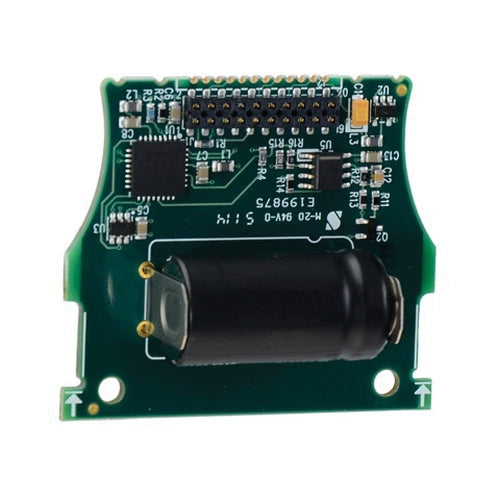

AG01E | Gas Platform Sensor | Carbon Monoxide 5% | Veris
+/-5% Accuracy CO Sensor, 0 to 500 ppm
Documents and manuals
Veris AG01E Documents
Overview
Details for AG01E
Gas Platform Sensor | Carbon Monoxide 5%
Description
GWN Series gas platform offers a convenient means for sensing gases in the environment. The GWN is mounted to any single-gang electrical box and wired to the building controller. Then, a single AGxx gas sensor (sold separately) is installed in the GWN. With this design, there is no need for a costly new installation when a sensor reaches the end of its life. The GWN platform remains installed, and the installer simply opens the GWN housing to replace the modular sensor inside, reducing labor costs and downtime. AG Series sensors can be swapped in the GWN platform at any time with minimal effort. The GWN platform converts the signal from the AG sensor into an analog or relay signal compatible with building control systems.
APPLICATIONS
- Controlling parking garage ventilation
- Air quality compliance in commercial buildings and factories
- Vehicle bays (ambulance/fire/taxi stations)
- Mechanical rooms
- Sally ports
Specifications
| Item Number | AG01E |
| Brand | Veris |
| Application Zone | Parking Garage | Plant Room | Living Space |
| Application | Parking Garage | Space Gas Detection |
| Brand | Veris |
| CO Measurement Accuracy | ±5% of F.S. |
| CO Measurement Range | 0 - 500 ppm |
| CO Measurement Resolution | 1 ppm |
| CO Sensor Type | Electromechanical |
| Measurement Type | CO |
| Operating Humidity | 0 - 90% RH; non-condensing |
| Operating Temperature | -4 - 122 °F (-20 - 50 °C) |
| Product Certification | CE | ETL |
| Product Type | Sensor Module |
| Range | AG for GWN |
| Sensor Configuration | Room Only |
| Sensor | CO Carbon Monoxide |
| Standards EMC | UL 61010-1 |
| Warranty | 2 years (from date of manufacture) |
