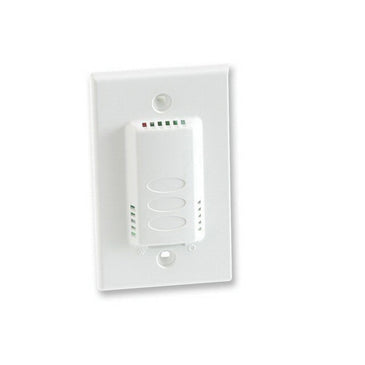

Cloud White ABS Plastic 4 to 20 mA Transmitter Temperature Sensor
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TEAMS
Documents and manuals
Veris TEAMS Documents
Overview
Details for TEAMS
Temp | Economy Wall | 4-20mA Output
Description
These wall mounted temperature sensors feature a discreet appearance combined with high accuracy and reliability. Aesthetically pleasing in any interior environment. Flexible mounting options include flush and single-gang for ease of installation.
Specifications (TW/TEA)
INPUT POWER
TEA Model 4-20mA mode; loop powered Class 2; 24VDC only;
0-10V, 3-wire, observe polarity; 12-30VDC; 0-5V,
3-wire, observe polarity; 24VAC, 50/60Hz, 12-30VDC
RANGES
TEA Model 10° to 35°C (50° to 95°F)
Analog Output TEA 4-20 mA model 2-wire, not polarity sensitive (clipped and capped)
Transmitter Type Solid-state, integrated circuit
Transmitter Accuracy ±0.5°C (±.9°F) typical**
Specifications
Item Number | TEAMS |
Brand | Veris |
Application Zone | Living Space |
Application | Wall |
Brand | Veris |
Dimension Depth | 0.5" (13 mm) |
Dimension Height | 3.2" (82 mm) |
Dimension Width | 2.8" (72 mm) |
Display Type | None |
Electrical Wiring Size | 22 AWG (0.32 mm²) |
Enclosure Material | ABS Plastic |
Measurement Type | Temperature |
Model | TEAMS |
Mounting | Wall |
Operating Temperature | -13 - 221 °F (-25 - 105 °C) |
Output Specifications | 4 - 20 mA |
Outputs | Analog output |
Override | No |
Product Certification | CE |
Product Type | Sensor |
Range | TE |
Sensor Configuration | Room Only |
Sensor | Temperature |
Setpoint | No |
Supply Voltage DC Nominal | 24 VDC |
Temperature Calibration Certificate | None |
Temperature Measurement Accuracy | ±0.9 °F (±0.5 °C) |
Temperature Measurement Range | 50 - 95 °F (10 - 35 °C) |
Temperature Sensor Type | Temperature Transmitter |
Warranty | 5 years |
