PWRLX05S020 | Pressure | Wet | Remote | LCD | 0-250PSID | Water | 20ft | Veris
15 to 30 VDC/24 VAC Input 4 to 20 mA/0 to 5 V/0 to 10 V Output Wet Water Media Differential Pressure Remote Transducer with 20 ft Standard Cable, 0 to 250 psig

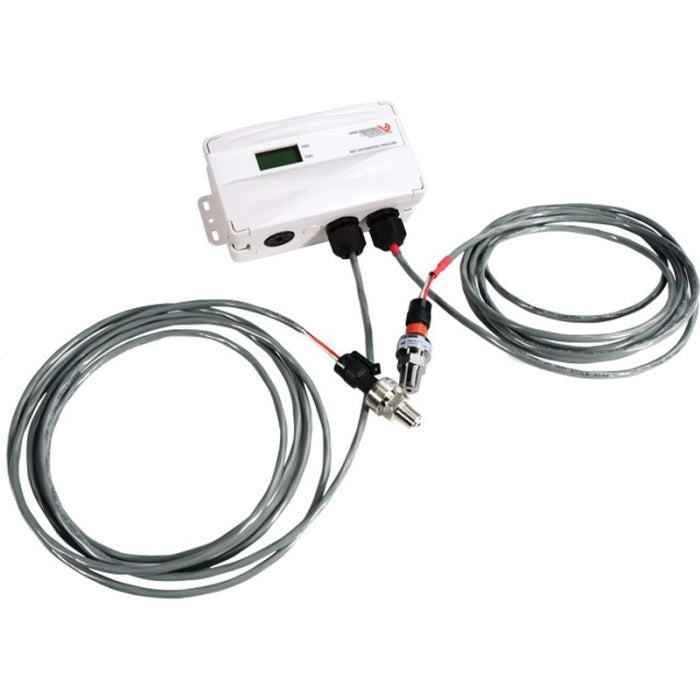

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PWRLX05S020
Documents and manuals
Veris PWRLX05S020 Documents
Overview
Details for PWRLX05S020
Pressure | Wet | Remote | LCD | 0-250PSID | Water | 20ft
Description
The PWR Series remote wet media pressure transducers allow remote pressure sensing capability using existing plumbing runs. With no need to run plumbing lines all the way to the transducer, the installation time and cost is greatly reduced. Select either armored (6 ft.) or shielded (10 or 20 ft.) cable, depending on the application.
APPLICATIONS
- Monitoring and controlling pump differential pressure
- Chiller/boiler differential pressure drop
- CW/HW system differential pressure
Specifications
Item Number | PWRLX05S020 |
Brand | Veris |
Application Zone | Plant Room |
Application | Pump and Compressor Differential Pressure | Chiller Differential Pressure Monitoring |
Brand | Veris |
Burst Pressure | 1;250 psi (85 bar) |
Calibration Certificate | No |
Dimension Depth | 2.4" (61 mm) |
Dimension Height | 3.1" (78 mm) |
Dimension Probe Length | 20' (6.1 m) |
Dimension Width | 6.7" (170 mm) |
Direction | Unidirectional |
Display Size | 0.6" x 1.2" (16 mm x 32 mm) |
Display Type | LCD |
Electrical Wiring | 3-wires |
Enclosure Material | Plastic |
Fitting Material | Stainless Steel |
Fitting Size | 1/4" NPT |
Fitting Type | Male |
IP Protection | IP65 (NEMA 4) |
LED Indicator Type | Red and Green |
Measurement Type | Differential Pressure |
Medium | Water |
Model | PWRLX05S020 |
Mounting | Panel | Remote Panel |
Operating Current | 125 - 280 mA |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 14 - 122 °F (-10 - 50 °C) |
Output Specifications | 4 - 20 mA | 0 - 5 V | 0 - 10 V |
Outputs | Analog output |
Pressure Measurement Accuracy | Range A and B: ±1% of F.S. Range C: ±1.5% of F.S. Range D: ±2% of F.S. |
Pressure Measurement Range | 0 - 25 psi (0 - 1.7 bar) | 0 - 50 psi (0 - 3.5 bar) | 0 - 100 psi (0 - 7 bar) | 0 - 250 psi (0 - 17 bar) |
Pressure Range | 0-250 psid |
Pressure Sensor Type | Differential (wet to wet) |
Pressure Sensor w LCD | Yes |
Product Certification | CE |
Product Type | Sensor |
Range | PWR |
Sensor | Pressure |
Standards EMC | EN 61000-6-1 |
Supply Voltage AC Nominal | 24 VAC |
Supply Voltage DC Range | 15 - 30 VDC |
Warranty | 5 years |
