PW2LX03S | Pressure | Wet | NEMA 4 | LCD | 0-50PSID | Veris
12 to 24 VDC Input 4 to 20 mA Output Wet Media Differential Pressure Transducer with LCD Display, 0 to 50 psig

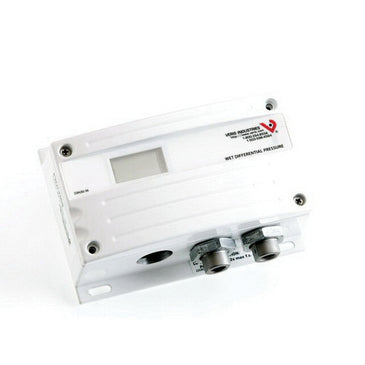

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PW2LX03S
Documents and manuals
Veris PW2LX03S Documents
Overview
Details for PW2LX03S
Pressure | Wet | NEMA 4 | LCD | 0-50PSID
Description
The PW2 Series 2-wire, 4-20mA wet pressure transducers incorporate microprocessor profiled sensors for exceptional accuracy and reliability. Easy to use and designed to provide exceptional installation savings, the PW2 Series is ideal for measuring pressure across pumps, filters, heat exchangers, compressors, and other non-corrosive wet media applications
APPLICATIONS
- Monitoring and controlling pump differential pressure
- Chiller/boiler differential pressure drop
- CW/HW system differential pressure
Specifications
Item Number | PW2LX03S |
Brand | Veris |
Application Zone | Plant Room |
Application | Pump and Compressor Differential Pressure | Chiller Differential Pressure Monitoring |
Brand | Veris |
Burst Pressure | 250 psi (17 bar) |
Calibration Certificate | No |
Dimension Depth | 2.2" (56 mm) |
Dimension Height | 4" (102 mm) |
Dimension Width | 5.8" (147 mm) |
Direction | Unidirectional |
Display Size | 0.7" x 1.4" (17 mm x 36 mm) |
Display Type | LCD |
Electrical Wiring | 2-wires (loop-powered) |
Enclosure Material | Powder Coated Aluminium |
Fitting Material | Stainless Steel |
Fitting Size | 1/ 8” NPT |
Fitting Type | Female |
IP Protection | IP65 (NEMA 4) |
Measurement Type | Differential Pressure |
Medium | Water |
Model | PW2LX03S |
Mounting | Panel |
Operating Current | 29 mA |
Operating Humidity | 0 - 90% RH; non-condensing |
Operating Temperature | 14 - 130 °F (-10 - 55 °C) |
Output Specifications | 4 - 20 mA |
Outputs | Analog output |
Pressure Measurement Accuracy | Range A; B and C: ±1% of F.S. Range D: ±2% of F.S. |
Pressure Measurement Range | 0 - 5 psi (0 - 0.3 bar) | 0 - 10 psi (0 - 0.7 bar) | 0 - 25 psi (0 - 1.7 bar) | 0 - 50 psi (0 - 3.5 bar) |
Pressure Range | 0-50 psid |
Pressure Sensor Type | Differential (wet to wet) |
Pressure Sensor w LCD | Yes |
Product Certification | CE |
Product Type | Sensor |
Range | PW2 |
Sensor | Pressure |
Standards EMC | EN 61000-6-1 |
Supply Voltage DC Range | 12 - 24 VDC |
Warranty | 5 years |
