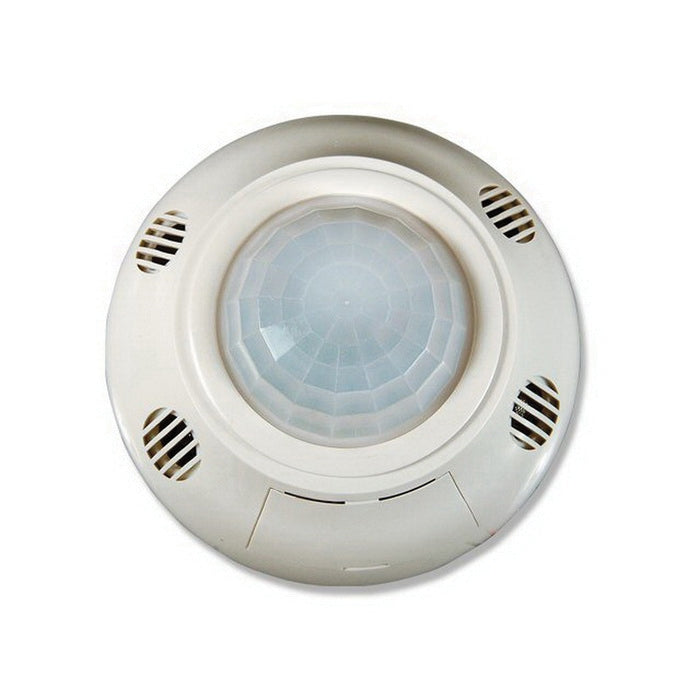

MSCD2000 | Sensor | Motion | Ceiling | Dual | 2000ft | Veris
Passive Infrared and Ultrasonic Occupancy Sensor, 2000 sq-ft
Documents and manuals
Veris MSCD2000 Documents
Overview
Details for MSCD2000
Sensor | Motion | Ceiling | Dual | 2000ft
FEATURES
- Up to 2000 square foot coverage area and 360 degree field of view for application versatility
- Daylight level sensing (from 0.5 to 250 foot-candles)... avoids unneccessary lighting
- Adjustable time delay (preset time delays from 15 seconds [test] to 30 minutes)...provides ultimate flexibility
- Adjustable coverage sensitivity (from 60-100%)
- Auxiliary relay...easily communicates with building control system
- Adjustment compartment cover...tamper resistant
- LED motion indicator...provides quick visual status
- Manual bypass...for easy commissioning
APPLICATIONS
- Lighting control based on occupancy
- Reducing energy usage
- Key component for LEED* certification programs
- MSC1000 – best for conference rooms, classrooms, and other general applications
- MSCD2000 – best for multi-stall bathrooms, large conference rooms, and warehouses
- MSCU2000 – best for lobbies, aisles, and great for multi-stall bathrooms
DESCRIPTION
MSC Series Occupancy Sensors employ passive infrared (PIR) and/or ultrasonic technologies to accurately detect occupancy and automatically switch room lighting.
The low-profile sensor is ceiling-mounted to maximize motion sensitivity in large areas with obstructions. With a 360 degree field of view, and up to 2000 square feet of coverage area, the ceiling-mounted occupancy sensor is ideal for conference rooms, classrooms, multi-stall bathrooms, and large office areas.
The MSC series also incorporates an integral photosensor to prevent lights from switching on when sufficient ambient light is present, as commonly found in windowed areas.
Installation and configuration are simple. The sensor readily mounts to drop ceilings, and it features front adjustments for setting sensitivity and time delay. The sensor also features an auxiliary relay for use with building automation and HVAC systems.
Specifications
Item Number | MSCD2000 |
Brand | Veris |
Application Zone | Living Space |
Application | Building Automation Systems |
Color | White |
Measurement Type | Motion |
Model | MSCD2000 |
Motion Detection Angle | 360 ° |
Motion Detection Range | 42' (12.8 m) |
Motion Detection Sensor Type | PIR | Ultrasonic |
Mounting | Ceiling |
Operating Humidity | 0 - 90% RH; non-condensing |
Operating Temperature | 32 - 122 °F (0 - 50 °C) |
Output Specifications | 1 A @ 24VDC |
Outputs | Switch output |
Product Certification | UL |
Range | MSCD2000 |
Sensor Configuration | Ceiling |
Sensor | Occupancy |
Warranty | 1 year |
