H971 | Current Sensor | DC | Split | 0-200A | Pulse Reset | Bi-Directional | Veris

Hawkeye 0 to 200 A DC Input 4 to 20 mA Bi-Directional Output Direct Current Transducer, Split-Core, 1.1 x 0.8 in

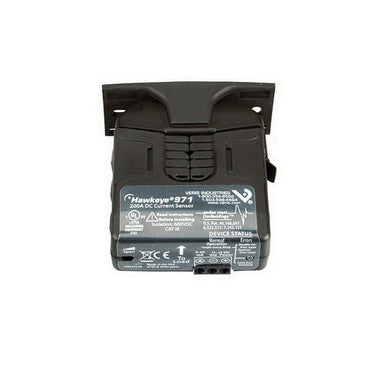

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H971

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris H971 Documents

CE Declaration Datasheet Engineering Specs Installation Guide More Info

Overview

Details for H971

Description

Hawkeye DC Transducers provide accurate load level monitoring of DC loads. The H971 and EA20 use Pulse Reset Technology™ with field proven circuitry to provide a superior solution for DC applications with minimal risk of permanent magnetization, providing longer life and better accuracy.

The EA20 and the H971 have 4-20mA output only. The H971 also offers bi-directional sensing capability and a user-adjustable span to allow greater application flexibility.

APPLICATIONS

Battery chargers
Motor armature current
Motor field current
Automotive loads
Marine equipment
Solar energy applications
Telecom
Electroplating

Specifications

Item Number	H971
Brand	Veris
Application	Building Automation Systems
Current Core	Split Core
Current Measurement Accuracy	±0.5 A below 100 A; ±0.5% of F.S. above
Current Measurement Range	0 - 200 A
Current Sensor type	Current Transducer; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	DC Current
Model	H971
Monitored Wire Size	0.8" (21 mm)
Mounting	Split Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	-22 - 140 °F (-30 - 60 °C)
Output Specifications	4 - 20 mA
Outputs	Analog output
Product Certification	UL \| CE
Product Type	Sensor
Range	DC Series
Relay Coil Voltage	None
Relay Contact Ratings	None
Relay Poles/Throw	None
Sensor	Current Sensor (Hawkeye)
Warranty	5 years
