H958 | Current Switch/Relay Combo | Split Core | Adj. | SPST | 9-12VDC Coil | Veris

Hawkeye 2.5 to 135 A Adjustable Trip Point Current Switch with 12 VDC SPST Relay, Split-Core

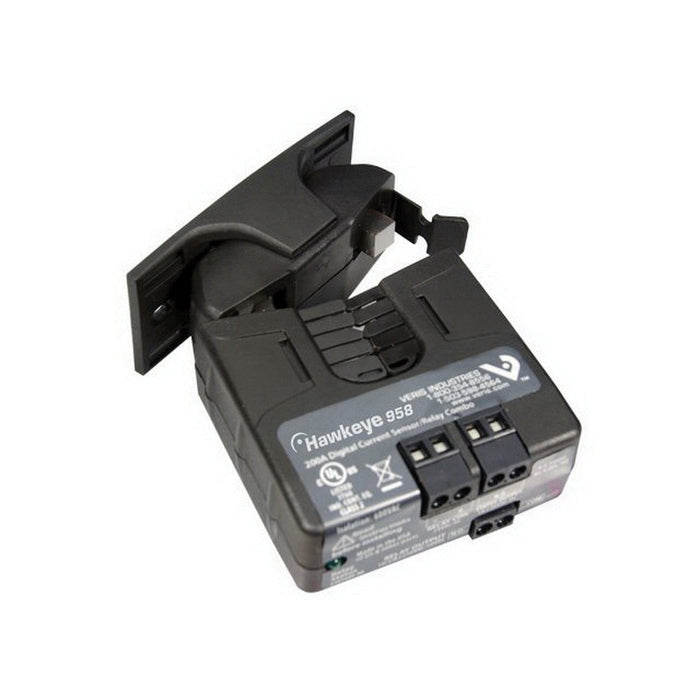

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H958

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris H958 Documents

Datasheet Installation Guide More Info

Overview

Details for H958

Current Switch/Relay Combo | Split Core | Adj. | SPST | 9-12VDC Coil

The Hawkeye Relay Combination Series is the ideal solution for the automation installer. These units combine a current switch and relay into a single package, reducing the space required for total control of fans and pumps. The current switch and relay operate independently of one another. These devices allow start/stop control and status monitoring with one device instead of two.

Specifications

Item Number	H958
Brand	Veris
Application	Building Automation Systems
Current Core	Split Core
Current Measurement Range	2.5 - 135 A
Current Sensor type	Current Switch; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H958
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.8" (21 mm)
Mounting	Split Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	N.O. 1 A @ 250 VAC
Outputs	Switch output \| Relay
Product Certification	UL \| CE
Product Type	Sensor
Range	HX58 Series
Relay Coil Voltage	12 VDC
Relay Construction	Mechanical
Relay Contact Ratings	Resistive: 10 A @ 250 VAC \| Resistive: 10 A @ 30 VDC \| Inductive: 5 A @ 250 VAC \| Inductive: 5 A @ 30 VDC
Relay Poles/Throw	SPST
Sensor	Current Switch (Hawkeye)
Setpoint	Adjustable
Warranty	5 years
