H950 | Current Switch/Relay Combo | Split Core | Fxd | SPST | 9-12VDC Coil | Veris

Hawkeye 1.5 to 200 A Fixed Trip Point Current Switch with 12 VDC SPST Relay, Split-Core

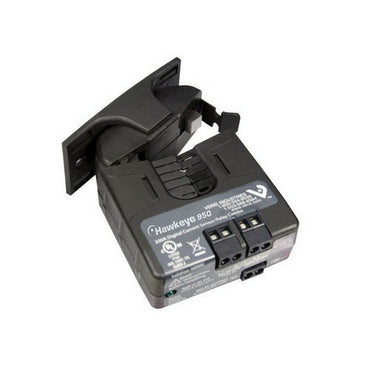

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H950

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris H950 Documents

Datasheet Installation Guide More Info

Overview

Details for H950

Current Switch/Relay Combo | Split Core | Fxd | SPST | 9-12VDC Coil

The Hawkeye Relay Combination Series combines an on/off status sensor and command relay in one package, saving the labor, wire runs, and space required to mount a separate relay. The switch and relay (not electrically connected) are in the same housing, saving space and cost. It is ideal for monitoring and controlling motors where belt loss is not a concern.

Specifications

Item Number	H950
Brand	Veris
Application	Building Automation Systems
Current Core	Split Core
Current Measurement Range	1.5 - 200 A
Current Sensor type	Current Switch; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H950
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.8" (21 mm)
Mounting	Split Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	N.O. 1 A @ 250 VAC
Outputs	Switch output \| Relay
Product Certification	UL \| CE
Product Type	Sensor
Range	HX50 Series
Relay Coil Voltage	12 VDC
Relay Construction	Mechanical
Relay Contact Ratings	Resistive: 10 A @ 250 VAC \| Resistive: 10 A @ 30 VDC \| Inductive: 5 A @ 250 VAC \| Inductive: 5 A @ 30 VDC
Relay Poles/Throw	SPST
Sensor	Current Switch (Hawkeye)
Setpoint	Fixed
Warranty	5 years
