H800 | Solid Core | Fixed | Range: 0.25-200AAC | Output: N.O. | 1.0A@30V | Veris

Hawkeye 0.25 to 200 A Fixed Trip Point Current Switch, Solid-Core

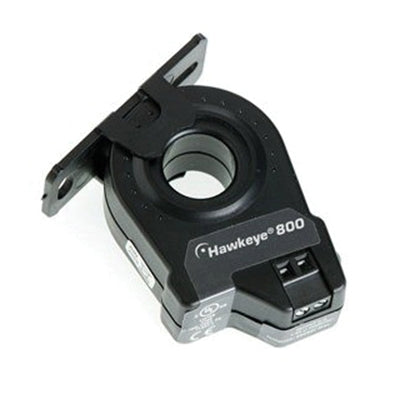

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H800

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris H800 Documents

CE Declaration Datasheet Engineering Specs Installation Guide More Info

Overview

Details for H800

Solid Core | Fixed | Range: 0.25-200AAC | Output: N.O. | 1.0A@30V

Description

Hawkeye x00 on/off current switches provide a cost-effective solution for monitoring status on unit vents, exhaust fans, recirculation pumps, and other fixed loads where belt loss is not a concern. Veris has applied new technology to the H300, H600, and H800 models to achieve impressive improvement in turn-on levels. The Hawkeye H300 and H600 have the lowest turn-on current in the industry at a mere 0.15 A!

APPLICATIONS

Monitoring status of electrical loads
Monitoring direct-drive units, exhaust fans, process motors, and other fixed loads
Verifying lighting run times and lighting status
VFD output On/Off status
Direct-Drive units, unit vents, fan coil units, exhaust fans, and other fixed loads

Specifications

Item Number	H800
Brand	Veris
Application	Building Automation Systems
Current Core	Solid Core
Current Measurement Range	0.25 - 200 A
Current Sensor type	Current Switch; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H800
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.7" (18 mm)
Mounting	Solid Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	-40 - 122 °F (-40 - 50 °C)
Output Specifications	N.O. 1 A @ 30 VAC/DC
Outputs	Switch output
Product Certification	UL \| CE
Product Type	Sensor
Range	HX00 Series
Relay Coil Voltage	None
Relay Contact Ratings	None
Relay Poles/Throw	None
Sensor	Current Switch (Hawkeye)
Setpoint	Fixed
Warranty	5 years
