H709HV | Current Switch | Solid | Adj | NO | 250V | Veris

Hawkeye 1 to 135 A Adjustable Trip Point High Voltage Output Current Switch, Solid-Core

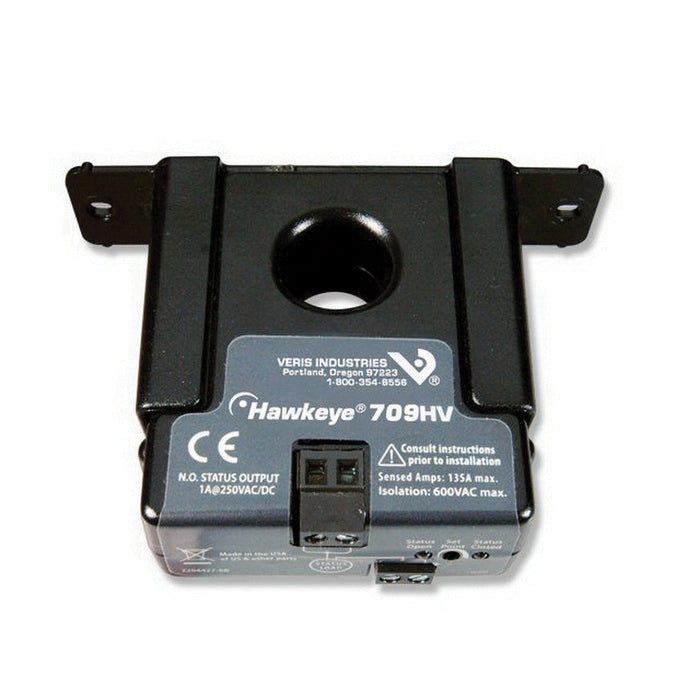

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H709HV

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris H709HV Documents

Datasheet Installation Guide More Info

Overview

Details for H709HV

Current Switch | Solid | Adj | NO | 250V

Hawkeye x09 series are high performance current switches, ideal for line voltage loads. The devices are powered by the current being monitored. They are ideal for monitoring performance on unit vents, exhaust fans, recirculation pumps and other fixed loads.

Versatility - removable mounting bracket optimizes field versatility
Adjustable trip point - precise current trip point setting
Induced from monitored conductor sensor power

Specifications

Item Number	H709HV
Brand	Veris
Application	Building Automation Systems
Current Core	Solid Core
Current Measurement Range	1 - 135 A
Current Sensor type	Current Switch; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H709HV
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.7" (18 mm)
Mounting	Solid Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	N.O. 1 A @ 250 VAC
Outputs	Switch output
Product Certification	CE
Product Type	Sensor
Range	HX09 Series
Relay Coil Voltage	None
Relay Contact Ratings	None
Relay Poles/Throw	None
Sensor	Current Switch (Hawkeye)
Setpoint	Adjustable
Warranty	5 years
