EP3031S2 | EP3 | No Anlg Out | Alarm | Failsafe | Cvr | Veris
0 to 25 psi Output Vent on Power Fail Electropneumatic Transducer, EP Cover Plate
Documents and manuals
Veris EP3031S2 Documents
Overview
Details for EP3031S2

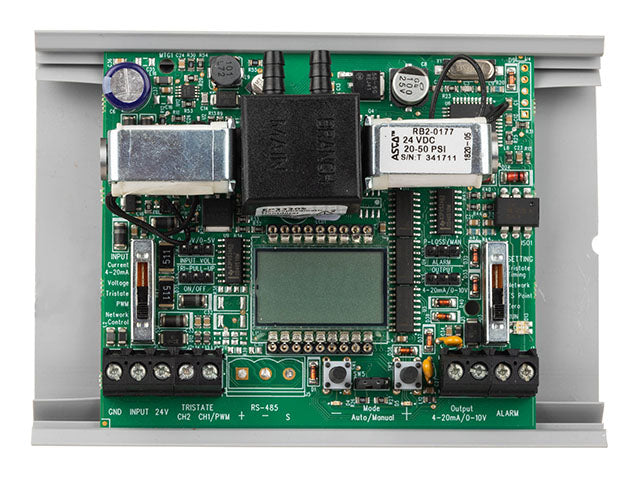

EP3 | No Anlg Out | Alarm | Failsafe | Cvr
Features
- Field-selectable 4-20mA/0-5V/0-10VDC input for application flexibility
- Poppet valve technology for quiet operation
- Manual override with set and hold feature great for commissioning those leaky systems
- Multi-point calibration; 3-15 psi (5 point calibration) & 0-20 psi (6 point calibration)
- Pressure loss alarm provides a contact closure if the EP3 is unable to achieve the desired output within a fixed length of time
- Failsafe vent solenoids bleed branch pressure on power failure for added safety
- Optional transparent plastic dust cover (AA43) protects units from dust and tampering (required for CE)
- User programmable zero and full scale outputs
- Backlit LCD for local indication of readings easy to view
- Dual-color LED assists in trouble shooting
- Tri-State and PWM inputs
Description
The EP3 Series combines a microcontroller with high performance, low power coil poppet valve technology to create a system with unparalleled accuracy and proven reliability. The poppet valves used in the EP3 consume no air, eliminating unnecessary air losses in the system and allowing for efficient, long-term operation. The EP3 permits versatility, since all models feature manual override and a tri-state control option. The LCD provides easy visibility and the LED indicators provide visual status of valve operation in manual or automatic mode. All models come with SnapTrack housing and optional covers are available.
Application
- Hospitals
- Schools
- Pneumatic dampers/actuators
Specifications
Input Power Class 2; 22-30VDC/20-30VAC, 47-63 Hz,150mA max. average, 350mA peak
Control Input Class 2; 4-20mA/0-5V/0-10VDC; switchselectable, Tri-State, PWM
Input Impedance 4-20mA, 250 Ω; 0-5V/0-10VDC, 10 kΩ
Manual Override Digital pushbutton adjust, switch-selectable mode
Alarm Contact 100mA@30VAC/DC (Pressure loss, manual mode, jumper selectable)
Accuracy 1% FS; combined linearity, hysteresis, repeatability @20°C (68°F) ambient
Temperature Coefficient ±0.1%/°C
Operating Temp Range 41° to 140°F (5° to 60°C)
Operating Hum. Range 10-90% RH noncondensing
SCIM 523 in3/min @ 45 psi; (8570 cm 3/min @ 310.3 kPa); 333 in 3/min @ 20 psi (5457 cm 3/min @ 137.9 kPa)
Supply Pressure Min (0.1 psi + user F.S. pressure); Max 45 psig
Control Range User programmable zero selectable from 0-25 psi: Full scale 0-25 psi
Pressure Differential 0.1 psig (supply to branch)
Pressure Indication Electronic, 3½ digit backlit LCD
Min. Tubing Length 15 feet*
Port Connection 1/8” I.D. poly tubing
Media Connection Clean, dry air, or inert gas. Do not use with oxygen service
Specifications
Item Number | EP3031S2 |
Brand | Veris |
Application Zone | Plant Room |
Application | Pneumatic Actuated Dampers | Pneumatic Actuators |
Brand | Veris |
Dimension Depth | 1.8" (46 mm) |
Dimension Height | 3.5" (89 mm) |
Dimension Width | 4.9" (125 mm) |
Direction | Unidirectional |
Display Type | None |
Electrical Wiring | 3-wires |
Fail Safe | Vent on power fail |
Fitting Material | Plastic |
Fitting Size | 0.18" (4.3 mm) |
Fitting Type | Male |
Input Specifications | 4 - 20 mA | 0 - 5 V | 0 - 10 V | Tri-State | PWM |
LED Indicator Type | Red and Green |
Measurement Type | Electropneumatic Transducers |
Medium | Dry Air | Inert Gas |
Model | EP3031S2 |
Mounting | Panel |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 41 - 140 °F (5 - 60 °C) |
Output Specifications | 4 - 20 mA | 0 - 10 V |
Pressure Measurement Accuracy | ±1% of F.S. |
Pressure Measurement Range | 3 - 15 psi (0.2 - 1 bar) | 0 - 20 psi (0 - 1.35 bar) |
Pressure Output Signal | 0-10 VDC |
Pressure Output Signal | 0-5 VDC |
Pressure Output Signal | 4-20 mA |
Pressure Range | 0-20 psig |
Pressure Range | 3-15 psig |
Pressure Sensor Type | Guage |
Pressure Sensor w LCD | Yes |
Product Certification | CE |
Product Type | Sensor |
Range | EP3 |
Sensor | Pressure |
Standards EMC | EN 61000-6-1 |
Supply Voltage AC Range | 20 - 30 VAC |
Supply Voltage DC Range | 22 - 30 VDC |
Warranty | 5 years |
