EP3030S | EP3 | No Anlg Out | Alarm | No Failsafe | Veris
0 to 25 psi Output Electropneumatic Transducer

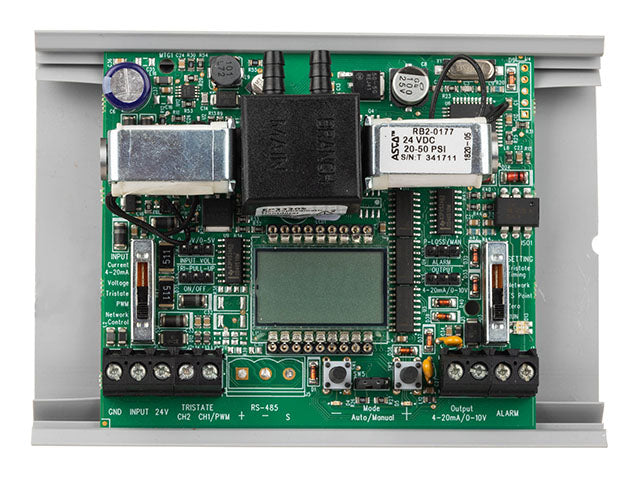

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EP3030S
Documents and manuals
Veris EP3030S Documents
Overview
Details for EP3030S
EP3 | No Anlg Out | Alarm | No Failsafe
The EP3 Series combines a microcontroller with high performance, low power coil poppet valve technology to create a system with unparalleled accuracy and proven reliability. The poppet valves used in the EP3 consume no air, eliminating unnecessary air losses in the system and allowing for efficient, long-term operation. The EP3 permits versatility, since all models feature manual override and a tri-state control option. The LCD provides easy visibility and the LED indicators provide visual status of valve operation in manual or automatic mode. All models come with SnapTrack housing and optional covers are available.Specifications
Item Number | EP3030S |
Brand | Veris |
Application Zone | Plant Room |
Application | Pneumatic Actuated Dampers | Pneumatic Actuators |
Brand | Veris |
Dimension Depth | 1.8" (46 mm) |
Dimension Height | 3.5" (89 mm) |
Dimension Width | 4.9" (125 mm) |
Direction | Unidirectional |
Display Type | None |
Electrical Wiring | 3-wires |
Fail Safe | None |
Fitting Material | Plastic |
Fitting Size | 0.18" (4.3 mm) |
Fitting Type | Male |
Input Specifications | 4 - 20 mA | 0 - 5 V | 0 - 10 V | Tri-State | PWM |
LED Indicator Type | Red and Green |
Measurement Type | Electropneumatic Transducers |
Medium | Dry Air | Inert Gas |
Model | EP3030S |
Mounting | Panel |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 41 - 140 °F (5 - 60 °C) |
Output Specifications | 4 - 20 mA | 0 - 10 V |
Pressure Measurement Accuracy | ±1% of F.S. |
Pressure Measurement Range | 3 - 15 psi (0.2 - 1 bar) | 0 - 20 psi (0 - 1.35 bar) |
Pressure Output Signal | 0-10 VDC |
Pressure Output Signal | 0-5 VDC |
Pressure Output Signal | 4-20 mA |
Pressure Range | 0-20 psig |
Pressure Range | 3-15 psig |
Pressure Sensor Type | Guage |
Pressure Sensor w LCD | Yes |
Product Type | Sensor |
Range | EP3 |
Sensor | Pressure |
Standards EMC | EN 61000-6-1 |
Supply Voltage AC Range | 20 - 30 VAC |
Supply Voltage DC Range | 22 - 30 VDC |
Warranty | 5 years |
