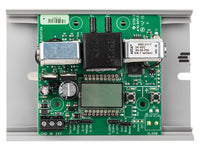

EP2101S | EP | Analog In | 3-15/0-20psi | Vent on Power Fail | Veris
3 to 15 or 0 to 20 psig Output Vent on Power Fail Electropneumatic Transducer
Documents and manuals
Veris EP2101S Documents
Overview
Details for EP2101S
EP | Analog In | 3-15/0-20psi | Vent on Power Fail
Description

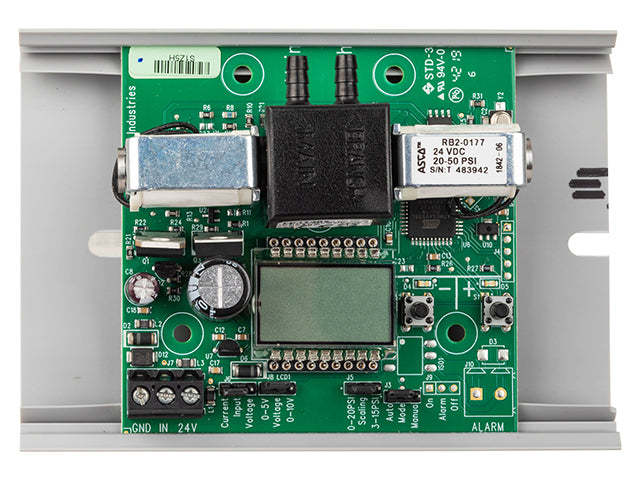

The EP2 Series electropneumatic pressure transducer uses microcontrolled poppet valve technology for highly accurate pressure sensing in multiple applications. The poppet valves consume no air, eliminating unnecessary air losses in the system and allowing for stable and reliable operation. The EP2 is comes installed on standard SnapTrack, and an optional dust cover is available to protect from the environment. An LCD display and LED indicators make it easy to read system status at a glance.
Features
- Field-selectable 4-20mA/0-5V/0-10VDC input for application flexibility
- Poppet valve technology for quiet operation
- Manual override with set and hold feature great for commissioning those leaky systems
- Multi-point calibration; 3-15 psi (5 point calibration) and 0-20 psi (6 point calibration)
- Pressure loss alarm provides a contact closure if the EP2 is unable to achieve the desired output within a fixed length of time
- Failsafe vent solenoids bleed branch pressure on power failure for added safety
- Optional transparent plastic dust cover (AA43) protects units from dust and tampering (required for CE)
Application
- Hospitals
- Schools
- Pneumatic dampers/actuators
Specifications
Input Power Class 2; 24VAC/DC nominal, 30VAC max.; 150mA max.
Control Input Class 2; 4-20mA/0-5V/0-10VDC; jumperselectable
Input Impedance 4-20mA, 250Ω; 0-5V/0-10VDC, 10 kΩ
Manual Override Jumper-selectable mode, digital pushbutton adjust
Alarm Contact 100mA@30VAC/DC (Pressure loss, manual mode, jumper selectable)
Accuracy 1% FS; combined linearity, hysteresis, repeatability
Compensated Temp Range -4° to 65°C (25° to 140°F)
Temperature Coefficient ±0.05%/°C
Operating Environment 10-90% RH noncondensing
Air Capacity 523 in3/min @ 45 psi (8570 cm3/min @ 10.3 kPa); 333 in3/min @ 20 psi (5456 cm3/min @137.9 kPa)
Supply Pressure 45 psig max.
Control Range 0-20 psig or 3-15 psig, jumper-selectable
Pressure Differential 0.1 psig (supply to branch)
Pressure Indication Electronic, 3-1/2 digit LCD
Minimum Tubing Length 15 feet*
Port Connection 1/8” I.D. poly tubing
Media Connection Clean, dry air, or inert gas. Do not use with oxygen service
Specifications
Item Number | EP2101S |
Brand | Veris |
Application Zone | Plant Room |
Application | Pneumatic Actuated Dampers | Pneumatic Actuators |
Brand | Veris |
Dimension Depth | 1.8" (46 mm) |
Dimension Height | 3.5" (89 mm) |
Dimension Width | 3.3" (84 mm) |
Direction | Unidirectional |
Display Type | None |
Electrical Wiring | 3-wires |
Fail Safe | Vent on power fail |
Fitting Material | Brass |
Fitting Size | 0.18" (4.3 mm) |
Fitting Type | Male |
Input Specifications | 4 - 20 mA | 0 - 5 V | 0 - 10 V |
LED Indicator Type | Red and Green |
Measurement Type | Electropneumatic Transducers |
Medium | Dry Air | Inert Gas |
Model | EP2101S |
Mounting | Panel |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 25 - 140 °F (-4 - 60 °C) |
Output Specifications | None |
Pressure Measurement Accuracy | ±1% of F.S. |
Pressure Measurement Range | 3 - 15 psi (0.2 - 1 bar) | 0 - 20 psi (0 - 1.35 bar) |
Pressure Output Signal | 0-10 VDC |
Pressure Output Signal | 0-5 VDC |
Pressure Output Signal | 4-20 mA |
Pressure Range | 0-20 psig |
Pressure Range | 3-15 psig |
Pressure Sensor Type | Guage |
Pressure Sensor w LCD | Yes |
Product Type | Sensor |
Range | EP2 |
Sensor | Pressure |
Standards EMC | EN 61000-6-3:2007 | A1:2011 Class B | EN 61000-6-1:2007 |
Supply Voltage AC Nominal | 24 VAC |
Supply Voltage AC Range | 24 - 30 VAC |
Supply Voltage DC Nominal | 24 VDC |
Warranty | 5 years |
