Overview
Details for E51C3A
Pwr Mtr | 4Q | Logging & Modbus | RopeCT

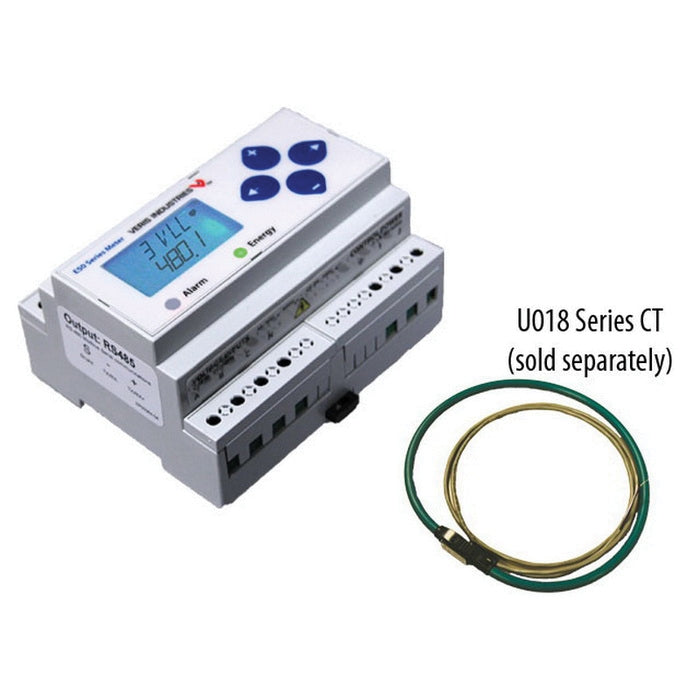

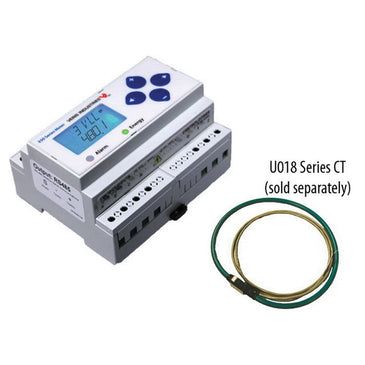

The E51CxA DIN rail power meter provides a solution for measuring energy data with a single device. Inputs include Control Power, CT's and 3-phase voltage. The E51CxA supports multiple output options, including solid state relay contacts, Modbus (with data logging) and pulse. The LCD screen on the faceplate allows instant output viewing. These meters include built-in CT integrators and CT power supplies. The E50CxA works only with Veris E683 series rope style CT's. The E51 meter is capable of bidirectional metering. Power is monitored in both directions (upstream and downstream from the meter). The meter is housed in a plastic enclosure suitable for installation on T35 DIN rail according to EN 50022. The E51 can be mounted either on a DIN rail or in a panel.
- Pulse output (normally open)
- Alarm output (normally close)
- RS-485 serial (Modbus RTU protocol), 2-wire output
- Mounting location - not suitable for wet locations, for indoor use only
Specifications
| Item Number | E51C3A |
| Brand | Veris |
| Accuracy | +/- 0.2% |
| Communication | ModBus (RTU) |
| Dimensions | 3.6" (91 mm) W x 4.2" (107 mm) W x 2.3" (59 mm) H |
| Display Type | LCD |
| Environmental Conditions | Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m |
| Frequency Rating | 50 - 60 Hz |
| Metering Product Family | E50 Power Meter |
| Monitored Voltage Range | 90 - 600 VAC |
| Mounting | Din-Rail |
| Operating Temperature | -22 - 158 °F |
| Output Specifications | Pulse: 30 VAC/VDC; 100 mA Maximum (NO); Alarm: 30 VAC/VDC; 100 mA Maximum (NC) |
| Power Monitoring | E5x Series Power and Energy Meters |
| Product Type | Bi-Directional Compact Power and Energy Meter |
| Range | E51 |
