L0515-Y6CD1-FHAN | Circulator Pump (Variable Speed) | Cast Iron | 1/25 HP | 115V | Single Phase | 0.84A | 3250 RPM | Flanged | 250 PSI Max Press. | Series LoadMatch | Taco
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: TacoSKU: L0515-Y6CD1-FHAN

Web Price:

$621.25
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

L0515-Y6CD1-FHAN | Circulator Pump (Variable Speed) | Cast Iron | 1/25 HP | 115V | Single Phase | 0.84A | 3250 RPM | Flanged | 250 PSI Max Press. | Series LoadMatch | Taco

Taco | L0515-Y6CD1-FHAN

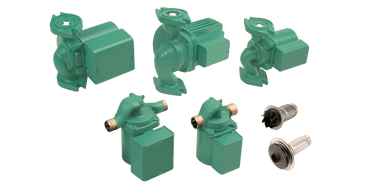

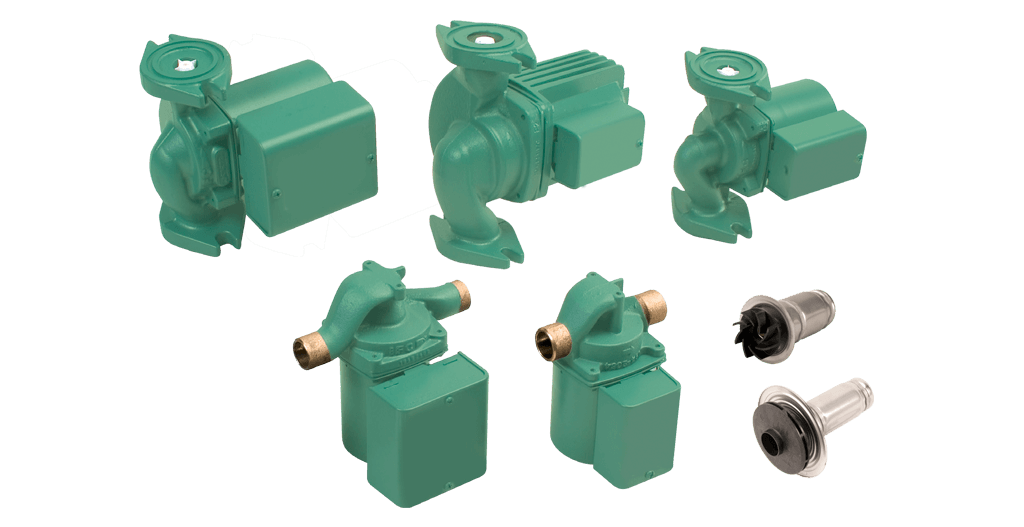

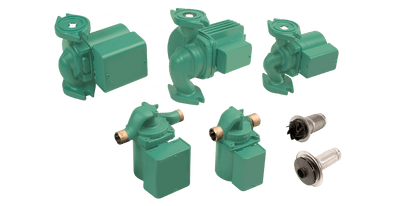

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to L0515-Y6CD1-FHAN

Documents and manuals

Overview

Details for L0515-Y6CD1-FHAN

Circulator Pump (Variable Speed) | Cast Iron | 1/25 HP | 115V | Single Phase | 0.84A | 3250 RPM | Flanged | 250 PSI Max Press. | Series LoadMatch

LoadMatch Circulators

Taco LoadMatch ® Circulators are designed for quiet, efficient operation on LoadMatch ® Fan Coil Heating and Cooling Systems. Each circulator includes a removable Integral Flow Check (IFC ®) to prevent gravity flow and reduce installation costs. An anti-condensate baffle prevents the build up of condensate on the motor windings when pumping chilled water. The unique, field serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance-free design of the LoadMatch ® Circulators provides unmatched reliability.

Performance Data

Min. Fluid Temp.: 32º F (0º C)
Max. Fluid Temp. Cast Iron or Stainless Steel: 230º F (110º C)
Max. Fluid Temp. Bronze: 220º F (104º C)
Max. Working Pressure: 200 PSI
Available in 115V, 230V or 277V voltages
Optional 0-10V variable speed control
Connection Sizes: 3/4″, 1″, 1-1/4″, 1-1/2″ Flanged, 3/4″ Sweat

Features
  • Integral Flow Check (IFC)–Eliminates In-Line Flow Check, Reduces Installed Cost, Easy to Service
  • Improved Performance vs. In-Line Flow Checks
  • Exclusive Anti-Condensate Baffle (ACB)—Protects motor windings against condensate build-up in chilled water systems
  • Unique Replaceable Cartridge Design—Field Serviceable
  • Unmatched Reliability—Maintenance Free
  • Quiet, Efficient Operation
  • Direct Drive – Low Power Consumption
  • Standard High Capacity Output
  • Compact Design
  • Self Lubricating
  • No Mechanical Seal
Applications
  • LoadMatch® Fan Coil Heating and Cooling Systems

Specifications

Item Number L0515-Y6CD1-FHAN
Brand Taco
Amps 0.84A
Connection Flanged
HP 1/25 HP
Material Cast Iron
Max Flow
Max Head Pressure
Max Pressue 250 PSI
Optional
Phase Single Phase
Pump Type Circulator Pump (Variable Speed)
RPM 3250 RPM
Series LoadMatch
Type Pump
Voltage 115V
