110-24 | Circulator Pump | Cast Iron | 1/12 HP | 115V | Single Phase | 1725 RPM | Flanged | 125 PSI Max Press. | Series 110 | Taco

Get Special Pricing!

Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!

Brand: TacoSKU: 110-24

Web Price:

$558.03

Availability: This product is currently available to purchase

Contact us for price breaks on large quantities!

This item ships FREE*

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

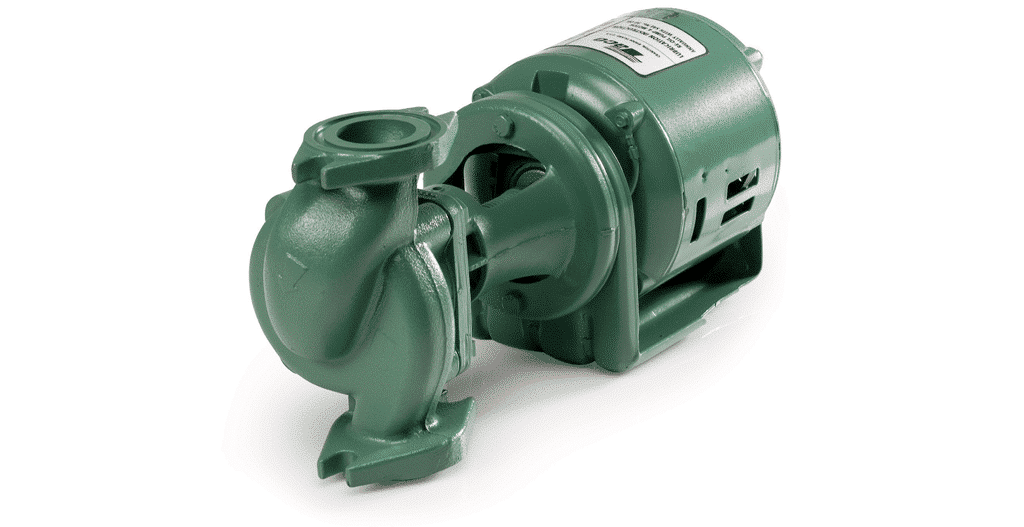

110-24 | Circulator Pump | Cast Iron | 1/12 HP | 115V | Single Phase | 1725 RPM | Flanged | 125 PSI Max Press. | Series 110 | Taco

Taco | 110-24

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 110-24

Documents Overview Specifications Parts & Accessories Reviews

Documents and manuals

Taco 110-24 Documents

Datasheet Installation Instructions More Info

Overview

Details for 110-24

Circulator Pump | Cast Iron | 1/12 HP | 115V | Single Phase | 1725 RPM | Flanged | 125 PSI Max Press. | Series 110

Taco 110-120 Series In-Line Circulators are designed to efficiently circulate heated or chilled water in residential or light commercial Hydronic Systems. These 110-120 Series In-Line Circulators may also be used for zoning large installations and are available in bronze or stainless steel construction for domestic hot water applications. 110-120 Series In-Line Circulators demonstrate proven performance, dependability, quiet operation and long lasting performance.

Performance Data

Flow Range: 0 – 68 GPM
Head Range: 0′ – 22′
Max. Fluid Temp.: 240°F
Max. Working Pressure: 125 PSI
HP: 1/12, 1/8, 1/6, 1/3
Connection Sizes: ¾” – 2″

Features

Resilient mounted, split phase motor with built-in overload protector
Equipped with sleeve bearings for quiet operation
One piece non-ferrous impeller
Stainless steel shaft
Rugged bronze sleeve bearing
Two piece carbon/ceramic seal assembly
Durable one piece spring coupling

Applications

Domestic Hot Water Heating Systems
Domestic Hot Water Recirculation
Hydronic Heating & Cooling
Solar / Geothermal

Specifications

Item Number	110-24
Brand	Taco
Amps
Connection	Flanged
HP	1/12 HP
Material	Cast Iron
Max Flow
Max Head Pressure
Max Pressue	125 PSI
Optional
Phase	Single Phase
Pump Type	Circulator Pump
RPM	1725 RPM
Series	Series 110
Type	Pump
Voltage	115V
