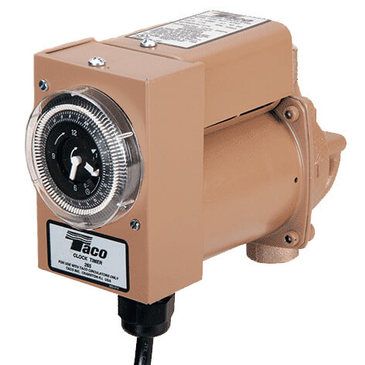

003 Plumb n' Plug Pump w/ Analog Timer, 1/40 HP (1/2" Sweat)
Rugged, Versatile, Quick and Easy to Install
With their self-lubricating design and no mechanical seal, Taco 00 ® Series Cartridge Circulators provide unmatched reliability that makes them maintenance free. Every Taco 00 ® Series Cartridge Circulator and 00 IFCm® circulator features a field-replaceable cartridge that contains all the moving parts. Replacing the cartridge rebuilds the circulator, so field service is fast and simple. 00 ® Series Cartridge Circulators wide variety of configurations, flange orientation, mounting and other options, materials and capabilities provide you with great performance in a broad range of applications.
Taco 00 IFC ® Cartridge Circulators feature an Integral Flow Check (IFC) that eliminates the additional installation costs that go along with separate in-line flow checks, improves system performance and further reduces maintenance.
Performance Data
Flow Range: 0 – 52 GPM
Head Range (ft): 0 – 32′
HP: 1/40 – 1/6
Connection Sizes: ¾” – ½” Flanged, ¾” Sweat, NPT or Union
Features
- Standard High Capacity Output
- Compact Design
- Quiet, Efficient Operation
- Direct Drive–Low Power Consumption
- Unique Replaceable Cartridge Design
- Field Serviceable
- Self lubricating
- No Mechanical Seal
- Unmatched Reliability–Maintenance Free
- Optional Integral Flow Check (IFC®)
- Prevents Gravity Flow/Reverse Flow
- Eliminates Separate In-Line Flow Check
- Reduces Installed Cost
- Improves System Performance
Applications
- Hydronic Heating System
- Hydro-Air Fan Coils
- Zoning with Circulators
- Chilled Water Cooling
- Domestic Water Systems
- Radiant Heating Systems
The Plumb n’ Plug with analog timer will cycle the circulator during peak usage periods such as early morning or early evening. An optional aquastat is available for constant circulation applications to maintain temperature between 95°F and 115°F. The Taco 003 PNP is ideal for recirculation loops. Its design operating condition of 3 gpm at 3 feet of head helps to reduce erosion, corrosion and noise in system piping. Use the 003 PNP for systems up to 200 total feet (supply and return) of 3/4" pipe. Installation of isolation valves, pipe insulation and flow checks are recommended
Features:
- 24 Hour Analog Timer
- 15 Minute ON/OFF Intervals
- Easy-to-Use Clock Timer
- Factory installed 6' line cord
Replacement Parts List:
Casing O-Ring: 007-003RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 003-001RP
Specifications
| Item Number | 003-BC4-PNP |
| Brand | Taco |
| Amperage | 0.45 |
| Amps | 0.43A |
| Connection Size | 1/2" |
| Connection Type | Sweat |
| Connection | Sweat (1/2") |
| Flow Range (GPM) | 0-7 |
| Head Range (ft.) | 0-4.5 |
| Hertz | 60 |
| Horse Power | 1/40 |
| HP | 1/40 HP |
| Material | Bronze |
| Max Flow (GPM) | 7 |
| Max Flow | 7 GPM |
| Max Head (Ft) | 4.5 |
| Max Head Pressure | 4.5ft |
| Max Pressue | 125 PSI |
| Max Pressure (PSI) | 125 |
| Optional | |
| Phase | 1 |
| Phase | Single Phase |
| Product Type | Recirculator Pump |
| Pump Type | Circulator Pump |
| RPM | 3250 |
| RPM | 3250 RPM |
| Series | Series 003 |
| Temperature Range (F) | 40°F - 220°F |
| Type | Dedicated |
| Type | Pump |
| Voltage | 115v |
| Weight (lbs) | 7 lbs |
