GEB136.1U | Damper Actuator | Non-Spring Return | 24 VAC | On/Off/Floating Point | 132 lb-in | SW | Siemens (OBSOLETE)
OpenAir™ GEB Series Electric Damper Actuator, rotary, non-spring return, 132 lb-in (15 Nm), 24 Vac/dc, floating control, 125 sec run time, dual auxiliary switches

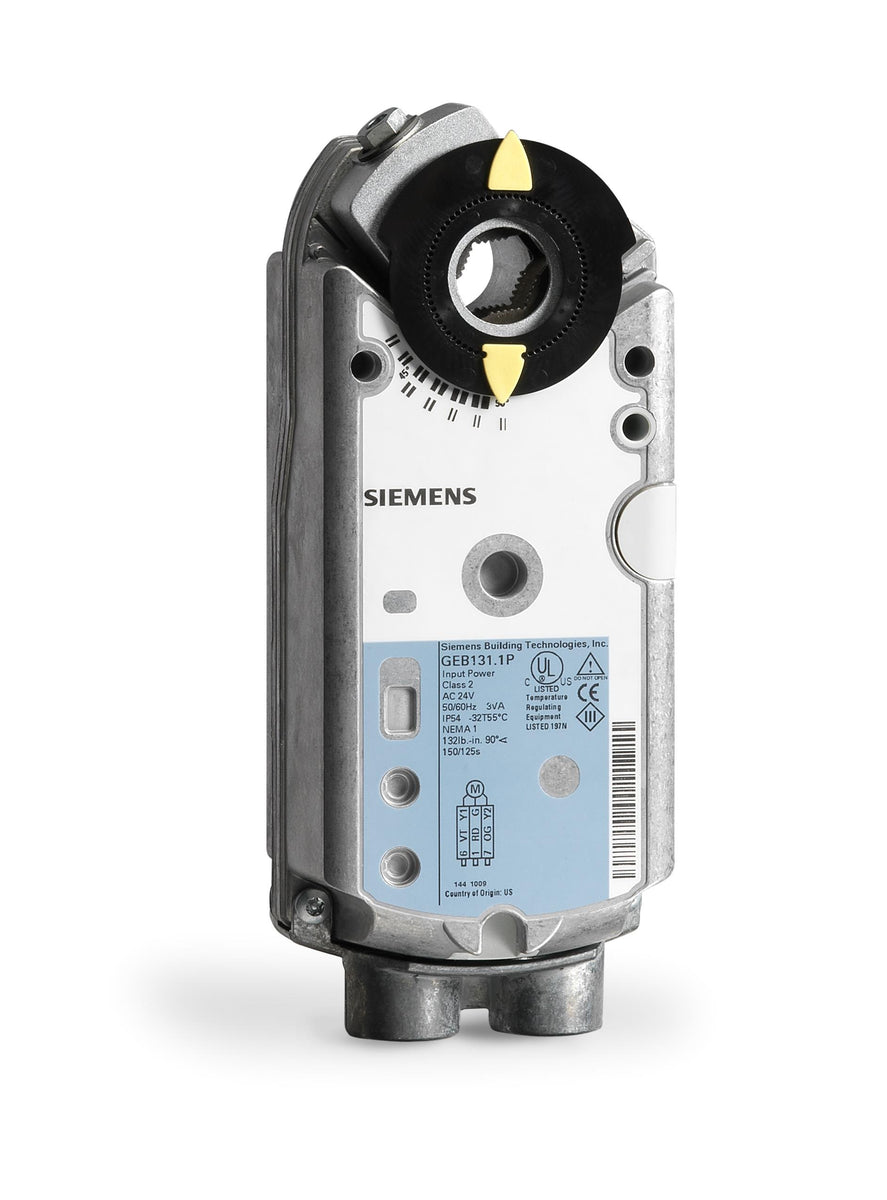

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GEB136.1U
Documents and manuals
Siemens GEB136.1U Documents
Datasheet(OpenAir™ GEB Series NSR Damper Submittal Sheet)Datasheet(OpenAir GEB Series Non-spring Return. 24 Vac. 132 lb-in. Rotary. Electronic Damper Actuators Technical Instructions)Declaration of conformity(GEB LVD Declaration of Conformity)Installation instruction(OpenAir GEB Series NSR Rotary Damper Actuators Installation Instructions)Other datasheet(Accessories and spare parts for air damper actuators ASC... ASK..)Dimension Drawings(Rotary air damper actuator without spring return GEB..) Installation Instructions More Info
Overview
Details for GEB136.1U
DISCONTINUED AND REPLACED WITH GEB146.1U
Damper Actuator | Non-Spring Return | 24 VAC | On/Off/Floating Point | 132 lb-in | SW
OpenAir™ GEB Series Electric Damper Actuator, rotary, non-spring return, 132 lb-in (15 Nm), 24 Vac/dc, floating control, 125 sec run time, dual auxiliary switchesSpecifications
- Control or Fire/Smoke Type
- Control Damper
- Torque
- 132 lb-in
- Positioning time
- 50 Hz:150 s, 60 Hz:125 s
- Position feedback
- No
- Power consumption
- 3 VA / 3 W
- Ambient humidity, operation
- 95 % r.h.
- Angular rotation
- 90°
- Operating voltage
- 24…28.8 V24 V#AC
- Frequency
- 50/60 Hz
- Auxiliary switch
- 2
- Cable length
- 3 ft
- Dimensions (W x H x D)
- 3.25 x 8.38 x 2.38 in
- Material, housing
- NEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
- Degree of protection
- IP64
