GDE161.1P | Damper Actuator | Non-Spring Return | 24 VAC | 0-10Vdc / 2-10Vdc | 44 lb-in | Siemens
OpenAir™ GDE Series Electric Damper Actuator, rotary, non-spring return, 44 lb-in (5 Nm), 24 Vac, 0 to 10Vdc control, 90 sec run time, plenum rated

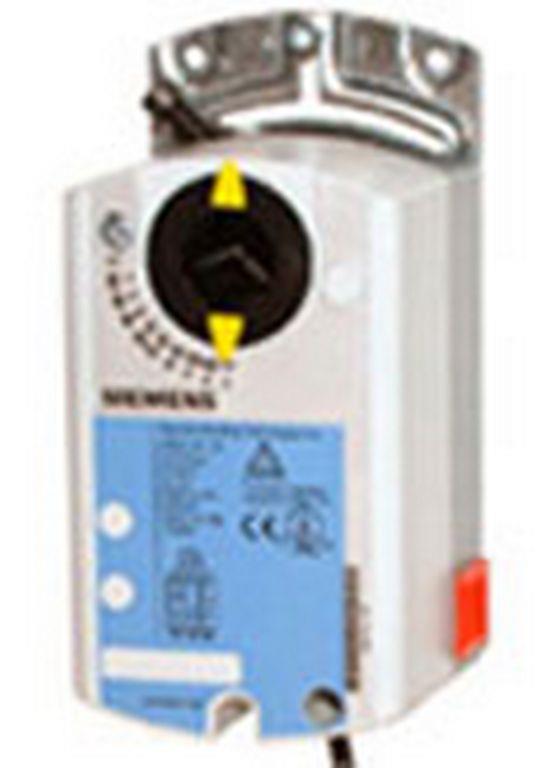

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GDE161.1P
Documents and manuals
Siemens GDE161.1P Documents
Datasheet(GDEGLB OpenAir Electronic Damper Actuators GDE Series Enhanced Non-spring Return Rotary Technical Instructions)Datasheet(GDEGLB OpenAir GDE Series. Enhanced Non-spring Return. 44 lb-in. Direct Coupled. Electronic Damper Actuators Submittal Sheet)Datasheet(OpenAir Damper Actuator Spring Return Electronic Damper Actuators Competitive Wiring Guide)Declaration of conformity(Baby Gap Declaration of Conformity)Environmental Declaration(Damper actuator)Installation instruction(GDEGLB OpenAir Electronic Damper Actuator. GDB / GLB Rotary. Non Spring Return Installation Instructions)Installation instruction(GDEGLB OpenAir Electronic Damper Actuators GDE/GLB Enhanced Rotary Non-spring Return Installation Instructions) Installation Instructions More Info
Overview
Details for GDE161.1P
Damper Actuator | Non-Spring Return | 24 VAC | 0-10Vdc / 2-10Vdc | 44 lb-in
OpenAir™ GDE Series Electric Damper Actuator, rotary, non-spring return, 44 lb-in (5 Nm), 24 Vac, 0 to 10Vdc control, 90 sec run time, plenum ratedSpecifications
- Control or Fire/Smoke Type
- Control Damper
- Torque
- 44 lb-in
- Positioning time
- 50 Hz:108 s, 60 Hz:90 s
- Position feedback
- Yes
- Power consumption
- 3.3 VA
- Ambient humidity, operation
- 95 % r.h.
- Angular rotation
- 90°
- Operating voltage
- 19.2…28.8 V24 V#AC
- Frequency
- 50/60 Hz
- Cable length
- 3 ft
- Dimensions (W x H x D)
- 2.75 x 5.44 x 2.38 in
- Material, housing
- NEMA Type 2, IP54 according to EN 60 529
- Degree of protection
- IP54
