MA41-7153-502 | Damper Actuator | 133 in-lb | Spg Rtn | 24V | On/Off | SW | Schneider Electric

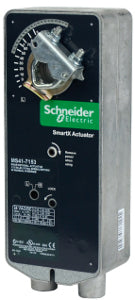

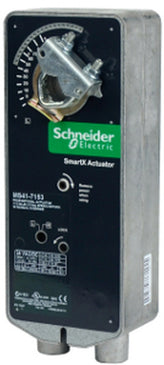

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MA41-7153-502

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric MA41-7153-502 Documents

Datasheet More Info

Overview

Details for MA41-7153-502

Actuator: (MA41-7153-502):

Actuator Type: Electric
Control Signal: 2-Position (On/Off)
Loss of Power Type: Spring Return
Power Input Voltage: 22 to 30 VDC, 24 VAC/VDC
Leads and Connections: 3 ft Appliance
Torque: 133 in-lb
Mechanical Movement: Rotary
Auxiliary Switch: 2 SPDT
Protection Rating: NEMA 1, NEMA 2
Product Line: Schneider Electric
Product Range: SmartX Actuator
Product Series: Mx4x-7xxx
Actuator Use: Butterfly Valves, Dampers, Globe Valves

Product Alert: Linkage required for Globe Valve Assembly use. NEMA 2 with conduit connector in the down position. Designed for controlling air dampers in building systems that require fail safe return, with two position, floating or proportional control.
