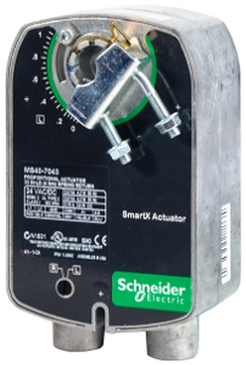

MS40-7043 | Damper Actuator | 35 in-lb | Spg Rtn | 24V | Modulating | Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to MS40-7043

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric MS40-7043 Documents

Datasheet More Info

Overview

Details for MS40-7043

Damper Actuator | 35 in-lb | Spg Rtn | 24V | Modulating

Actuator: (MS40-7043):

Actuator Type: Electric
Control Signal: Proportional
Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
Loss of Power Type: Spring Return
Power Input Voltage: 22 to 30 VDC, 24 VAC/VDC
Leads and Connections: 3 ft Plenum
Torque: 35 in-lb
Mechanical Movement: Rotary
Protection Rating: NEMA 2
Product Line: Schneider Electric
Product Range: SmartX Actuator
Product Series: Mx4x-7xxx
Actuator Use: Dampers, Globe Valves

Product Alert: Linkage required for Globe Valve Assembly use. DuraDrive Direct Coupled Actuators are designed to be used in both damper and valve control applications. The follow general instructions are for damper applications, refer to the Applicable Literature table for valve literature. The MA40-704X, MA4X-707X and MA4X-715X series spring return actuators are used for the on-off, fail safe control of dampers and valves in HVAC systems.
