ZXM-2 | ZXM-2 Expansion Panel (UZC) | EWC Controls

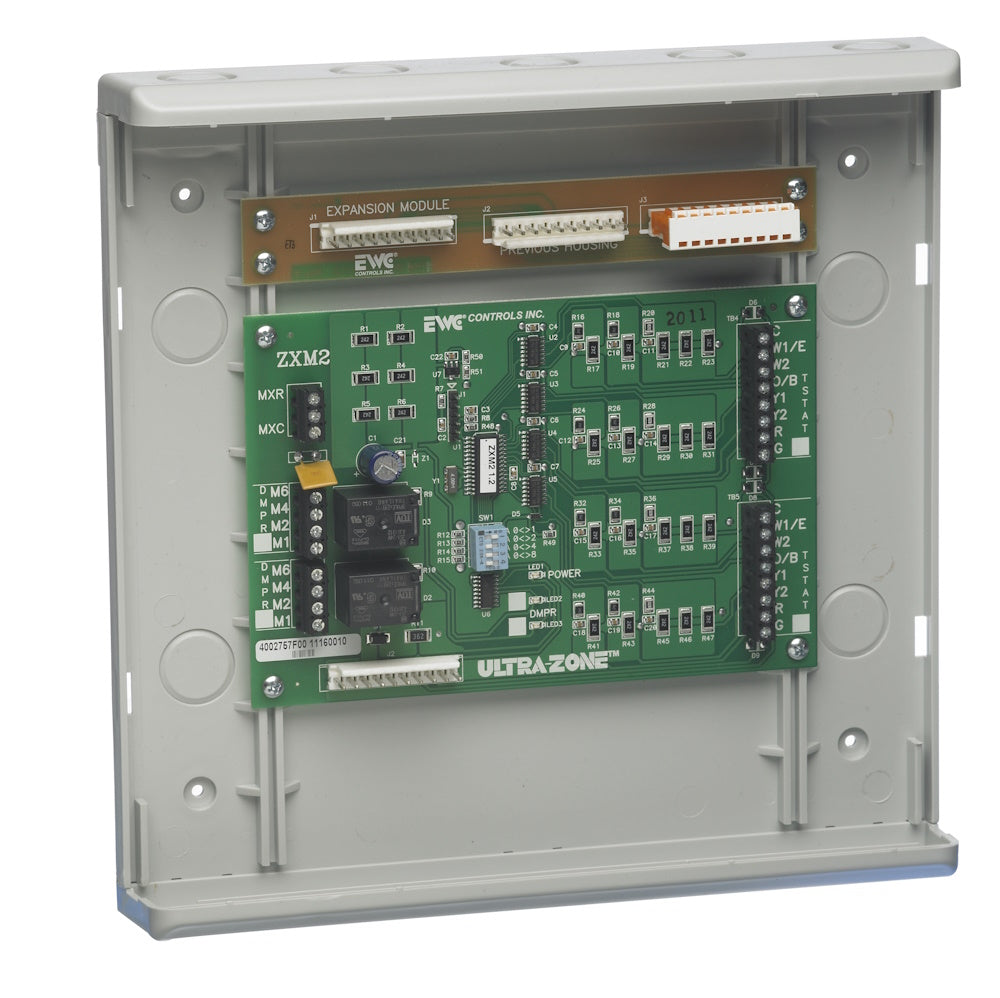

ZXM-2 Expansion Panel (UZC)

FEATURES

NUMBER OF ZONES:

Provides 2 additional zones for the Model UZC4. A total of 8 Model ZXM-2 expansion Modules can be utilized to add up to 16 additional zones. COMPATIBLE

THERMOSTATS:

Any Single Stage or Multi-Stage Heat/Cool or Heat Pump Thermostats.

COMPATIBLE DAMPERS:

EWC Models URD, ND, RSD and SID. Any 24vac 3 Wire or 2 Wire damper.

ADDITIONAL FEATURES:

On Board LED’s indicate system operation.

REQUIREMENTS:

Must be used to expand a current UZC4 or higher system. Cannot be used as a Stand-alone solution or with older UZC systems (UZC-3C or UZC-2B).
