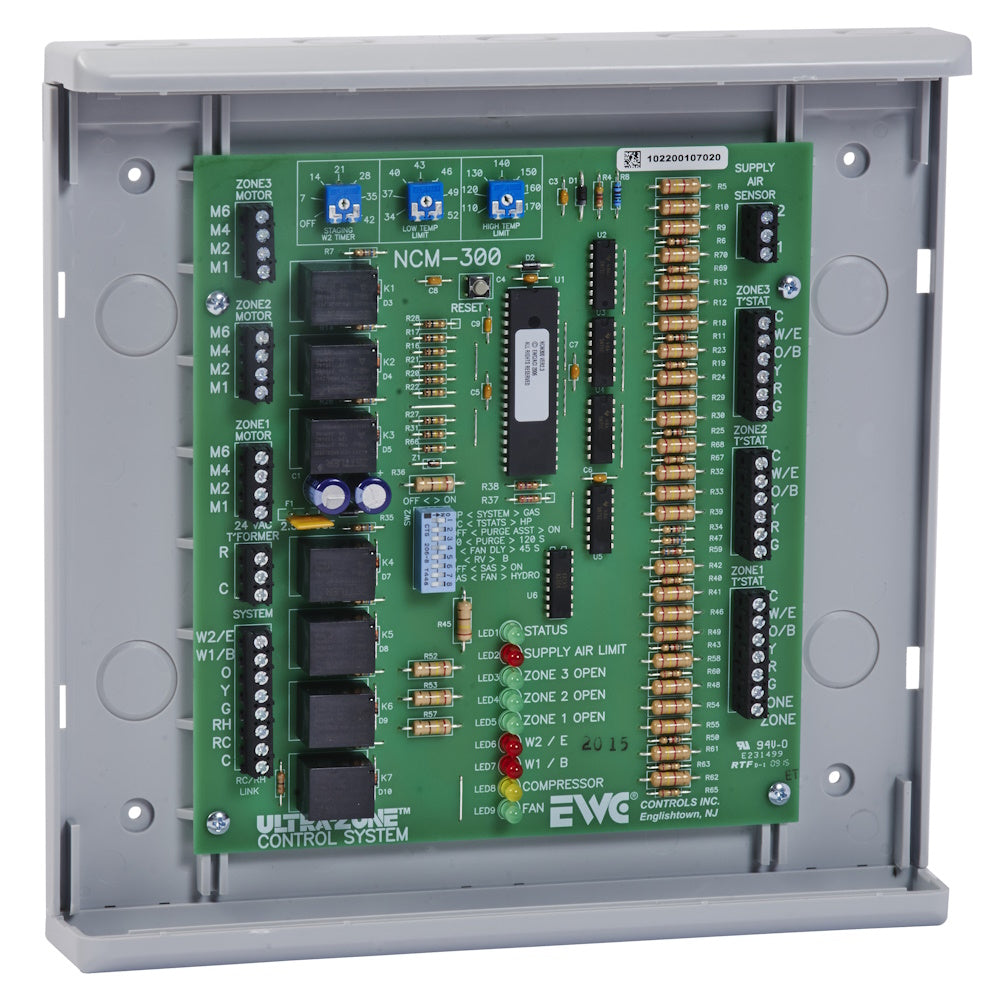

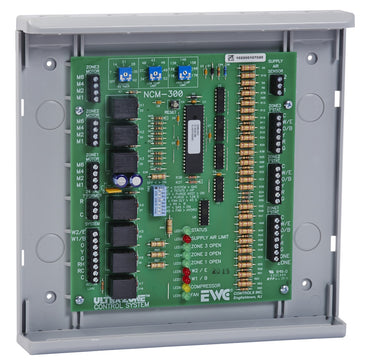

NCM-300L 3 Zone Non Expand Cntr Panel (Less Sensor)

FEATURES

NUMBER OF ZONES:

• 2 - 3 Zones
• Non-expandable

COMPATIBLE EQUIPMENT:

• Gas/Electric/Hydro – Up to 2 Stages Heating and 1 Stage Cooling
• Heat Pump Conventional – Up to 2 Stages Heating and 1 Stage Cooling

COMPATIBLE THERMOSTATS:

• Any single stage Heat/Cool Thermostat or 2 Stage Heat
• 1 Stage cool Heat Pump Thermostat

COMPATIBLE DAMPERS:

• EWC Models URD
• ND
• RSD and SID
• Any 24vac 3 Wire or 2 Wire damper

ACCESSORIES:

• Model SAS – Supply air sensor (Included)
• Model CPLS – Coil Protection Lockout Switch

ADDITIONAL FEATURES:

*Staging via Adjustable On-board Timer (7 to 42 Minutes). *Enhanced Hydro-Air capabilities, can delay fan activation on Heating demand. *Supply Air Temperature Monitoring to help protect HVAC equipment. *Adjustable Purge time (90 or 120 seconds). *On Board LED’s indicate system operation.
