Overview
Details for VZ7656R1031B
Rooftop Unit Controller
ZN SYS CTRL BAC 2H/2C+SCH+ECOIntroduction
The VZ7000 BACnet® commercial zoning system is specifically designed to bring a simple scalable BACnet zoning system solution to the commercial mid-market without the cost associated with a typical DDC zoning system.
Our zoning system provides even more flexibility by offering additional functionality and new models covering more applications while still achieving excellent energy savings. The new central models include rooftop and heat pump units controlling analogue heat, CO2 levels, and indoor air quality in conjunction with zoning controllers that provide floating and analogue damper control. The most unique feature of the zoning system is its scalability; a single central controller unit can support up to 63 individual zone controllers.

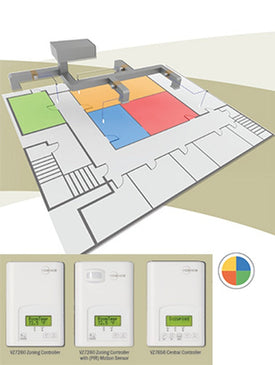

Zoning System
All zone controllers can be ordered with an on-board passive infrared (PIR) occupancy sensor cover that allows for advanced occupancy strategies. This enables the zone controllers to be able to provide even greater energy savings to zones during scheduled occupied events when no occupants are present. This automatic energy-saving feature reduces overall operating costs and accelerates return on investment.
With exceptional system performance rivalling more costly and complex programmable automation systems, the VZ7000 can be installed at a fraction of the total cost of a comparable system. System installation, setup, and commissioning have been simplified by eliminating the need for additional external commissioning equipment or tools. All required testing and configuration including addressing and zone-weighting is accomplished using the easy-to-read LCD interface provided on all controllers.
Moreover, since no other programming tools are required, mechanical service technicians can quickly and easily install and service the system without costly support.
The VZ7000 offers unparalleled flexibility through the use of the open BACnet communication protocol. The system can also be complemented with your choice of BACnet controllers or graphical workstation software. BACnet object mapping can also be accomplished seamlessly without the need for any complex programming tools.
Specifications
Item Number | VZ7656R1031B |
Brand | Viconics |
Thermostat | Programmable |
