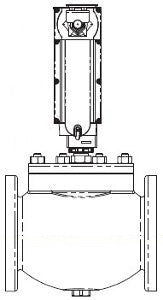

VS-8223-576-5-12 | VB: 2-1/2 in, 2W, Globe, FLG, UC, BR, 56 cv, 125 PSI; Act (MS40-7173): Elec, Prop, SR, NC, 24 VAC/VDC, App, 150 in-lb, Rotary, N1/N4 | Schneider Electric

VB: 2-1/2 in, 2W, Globe, FLG, UC, BR, 56 cv, 125 PSI; Act (MS40-7173): Elec, Prop, SR, NC, 24 VAC/VDC, App, 150 in-lb, Rotary, N1/N4

Valve Assembly:

• Body Size: 2-1/2 in
• Configuration: 2-Way
• Type: Globe
• Connection: Flanged
• Stem Flow Action: Stem up A closed
• Material Trim: Brass
• Flow Coefficient: 56 cv
• Close-Off Pressure: 125 PSI
• Actuator Type: Electric
• Control Signal: Proportional
• Control Signal Range: 2 to 10 VDC, 4 to 20 mAdc
• Loss of Power Type: Spring Return
• Loss of Power Position: Normally closed
• Power Input Voltage: 24 VAC/VDC, 22 to 30 VDC
• Leads and Connections: 3 ft Appliance
• Torque: 150 in-lb
• Mechanical Movement: Rotary
• Protection Rating: NEMA 1, NEMA 4

Assembly Components:

• Valve Body: VB-8223-0-5-12
• Valve Range: Balanced Plug Technology
• Valve Linkage: AV-607-1
• Actuator: MS40-7173
• Actuator Range: SmartX Actuator

The Schneider Electric VA, VF, and VS-7000 and -9000 series Linked Globe Valve Assemblies with Schneider Electric SmartX Linear Series Actuators are complete actuator/valve assemblies that accept two position, floating, or proportional control, respectively, from a DDC system or from a thermostat, for control of hot water, chilled water, and steam. These valve assemblies consist of Linear Series spring return Schneider Electric SmartX Actuators directly mounted on 1/2" up to 4" (15 mm to 80 mm) 2-way and 3-way globe valve bodies. 3-way assemblies are available for mixing (1/2" to 4") and diverting (1/2" to 2") applications. The Linear Series Schneider Electric SmartX Actuators feature linear travel and an integral linkage, eliminating the need for separate linkages. Typical applications include reheat on VAV boxes, fan coil units, hot and chilled water coils in air handling units, unit ventilators, and central system applications.
