VP220A-80H-176-U331 | SmartX, Pressure Independent Valve Assembly, 3 in, 2-way, 176 GPM, MP500C-SRD proportional spring return actuator | Schneider Electric
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: Schneider ElectricSKU: VP220A-80H-176-U331

Web Price:

$4,719.44
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships via FREIGHT
The product is not cancelable or returnable unless found defective
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

Email

VP220A-80H-176-U331 | SmartX, Pressure Independent Valve Assembly, 3 in, 2-way, 176 GPM, MP500C-SRD proportional spring return actuator | Schneider Electric

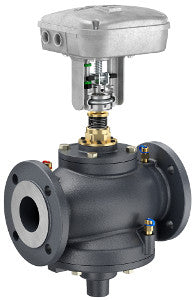

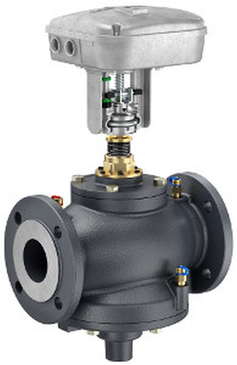

Schneider Electric | VP220A-80H-176-U331
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VP220A-80H-176-U331
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Schneider Electric VP220A-80H-176-U331 Documents

Datasheet More Info

Overview

Details for VP220A-80H-176-U331

SmartX, Pressure Independent Valve Assembly, 3 in, 2-way, 176 GPM, MP500C-SRD proportional spring return actuator

Valve Assembly:
  • Body Size: 3 in
  • Configuration: 2-Way
  • Type: Pressure Independent
  • Connection: Flanged
  • Flow Rate: 176 gpm
  • Close-Off Pressure: 232 PSI
  • Actuator Type: Electric
  • Control Signal: Floating, Proportional
  • Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20 mAdc
  • Loss of Power Type: Spring Return
  • Loss of Power Position: Normally closed
  • Power Input Voltage: 24 VAC, 24 VDC
  • Leads and Connections: No leads
  • Force: 500 N
  • Mechanical Movement: Linear
  • Auxiliary Switch: Available as accessory
  • Additional Features: Field selectable floating input signal travel time
  • Protection Rating: IP54
Assembly Components:
  • Valve Body: VP220A-80CQH
  • Valve Range: SmartX PIBCV
  • Valve Linkage: None, tool-less connection
  • Actuator: MP500C-SRD
  • Actuator Range: SmartX Actuator

Product Alert: Spring return stem down. Not for use with steam

Specifications

Item Number VP220A-80H-176-U331
Brand Schneider Electric
Control Input Floating Point
Control Valves Type Pressure Independent
End Switch Yes
Housing NEMA 1
Spring Return Spring Return
Valve Size 80 mm - 2 Way
Voltage
