Details for TVS2IMA12O

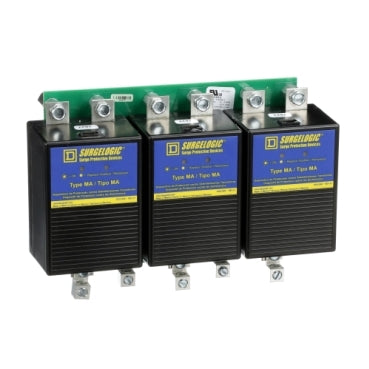

OEM/ASY IMA KIT 120/208 120

Square D™ load center surge protective devices, TVS2IMA12O, are easy to install plug-in units that install as quickly as a standard circuit breaker. The surge suppressors use two pole spaces in a QO™ or Homeline™ load center, or NQ panelboard. US and Canadian UL® Listed as Type 2 SPD to the UL 1449 standard. Complies with requirements of NEC® Article 285, CSA 233.1-87, and CSA C22.2 No. 8- M1986 as appropriate.

Specifications

Product: Surge protection device
Range: Surgelogic
Device Short Name: IMA
Surge Current: 120 kA per phase
Voltage Rating: 208Y/120 V AC
Number of Phases: 3 phase
Wiring Configuration: 4-wire
Connection: Lugs AWG 12...AWG 2 aluminium/copper 35.40 lbf.in (4 N.m)
MCOV: 150 V
Nominal Discharge Current: 20 kA
SCCR: 200 kA
Provided Equipment: Alarm enable/disable switch;Diagnostic display;Backplane;Cables
Height: 6.13 in (155.7 mm)
Width: 9.86 in (250.4 mm)
Depth: 3.65 in (92.7 mm)
Enclosure Rating: NEMA 2
Standards: UL 1449:ed. 4;CSA C22.2 No 8:1986;UL 96A:ed. 12;UL 1283;IEC 61643-1
Category: 08468-SURGE PROTECTION OEM
Discount Schedule: DE1B
GTIN: 785901599111
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 7.80 in (19.812 cm)
Package 1 Width: 9.40 in (23.876 cm)
Package 1 Length: 12.40 in (31.496 cm)
Package 1 Weight: 8.40 lb(US) (3.81 kg)
Warranty: 18 months
