T36DN13G7 | TeSys NEMA Sz 2 open starter, 3P, 120 VAC | Square D by Schneider Electric

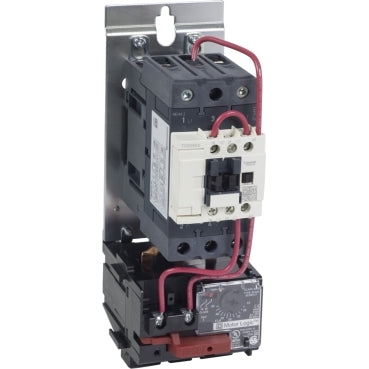

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to T36DN13G7
Overview
Details for T36DN13G7
TeSys NEMA Sz 2 open starter, 3P, 120 VAC
TeSys NEMA Sz 2 Open Starter- Line Rated Current : 45 A
- Auxiliary Contacts : 1 NO + 1 NC
- Horsepower Rating : 10 HP 200 V AC, 15 HP 230 V AC, 25 HP 460 V AC, 25 HP 575 V AC
- Number of Poles : 3P
- Phase : 3 phases
- System Voltage : 600 V AC
- Control Circuit Voltage : 120 V AC
Specifications
- Product
- Starter
- Range of Product
- TeSys N
- Current Rating
- 45 A
- Certifications
- UL Listed;CSA
- Control Circuit Type
- Common control circuit
- Enclosure Type
- Not rated (open device)
- Auxiliary Contacts
- 1 NO + 1 NC
- Horsepower Rating
- 10 HP 200 V AC;15 HP 230 V AC;25 HP 460 V AC;25 HP 575 V AC
- Number of Poles
- 3P
- Phase
- 3 phase
- Maximum Voltage Rating
- 600 V AC
- NEMA Size
- 2
- Control Circuit Voltage
- 120 V AC
- Starter Type
- Non reversing
- Electrical Connection
- Screw clamp terminals
- Overload Type
- Solid state Motor Logic class 10/20 15…45 A
- Category
- 21198-TESYS N STARTERS SIZES 00 - 2
- Discount Schedule
- CP1
- GTIN
- 785901958123
- Returnability
- No
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Weight
- 8.10 lb(US) (3.674 kg)
