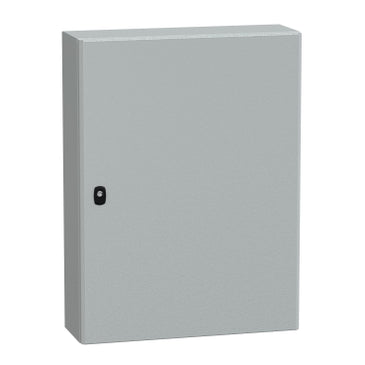

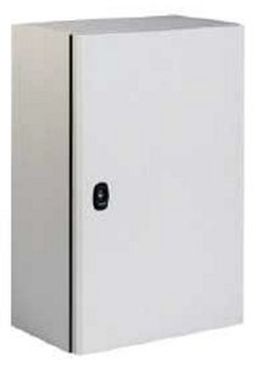

NSYS3D8620P | Spacial S3D plain door with Mounting Plate. H800xW600xD200.IP66 IK10 RAL7035. | Square D by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to NSYS3D8620P

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D NSYS3D8620P Documents

Datasheet More Info

Overview

Details for NSYS3D8620P

Spacial S3D plain door with Mounting Plate. H800xW600xD200.IP66 IK10 RAL7035.

Spacial S3D plain door with Mounting Plate

H800xW600xD200
Gutter-shaped front rail double sheet thickness; Single piece body
1 Fron-facing door
3 points lock, 3mm double-bar
Galvanized stell for mounting plate; Steel for enclosure
Epoxy-polyester powder enclosure
IP66 IK10
Grey RAL 7035

Spacial S3D wall mounted steel enclosure with plain door. 800 x 600 x 200 mm. Single piece body, mounting plate included. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035.

Specifications

range: Spacial
product name: Spacial S3D
Application: Multi-purpose
Category: Compact enclosure
enclosure nominal height: 31.50 in (800 mm)
enclosure nominal width: 23.62 in (600 mm)
enclosure nominal depth: 7.87 in (200 mm)
door type: Solid
mounting plate description: Plain
type of gland plate: Standard
installation accessory type: Wall-mounting
device composition: 1 body;1 mounting plate;1 door with lock;1 cable gland plate
body type: Single piece body;Gutter-shaped front rail double sheet thickness
number of doors: Front face 1
door opening side: Reversible 120 °)
lock type: 3 points lock;3 mm double-bar
accessibility for operation: Front
removable parts: Door by hinges;Cable gland plate by screws;Mounting plate by fixing element
material: Enclosure steel;Mounting plate galvanised steel
surface finish: Enclosure epoxy-polyester powder
color: Enclosure Gray RAL 7035)
Standards: IEC 62208
Product Certifications: DNV;cUL;LR;GL;UL;BV
Net Weight: 63.93 lb(US) (29 kg)
NEMA Degree of Protection: NEMA 4X/13
IK degree of protection: IK10 IEC 62262
IP degree of protection: IP66 IEC 60529
Category: 80034-ENCLOSURE SYSTEMS WALL MOUNT METAL
Discount Schedule: ES1
GTIN: 3606480158995
Returnability: No
Country of origin: FR
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 9.65 in (24.5 cm)
Package 1 Width: 24.21 in (61.5 cm)
Package 1 Length: 31.89 in (81.0 cm)
Package 1 Weight: 64.35 lb(US) (29.189 kg)
Warranty: 18 months
