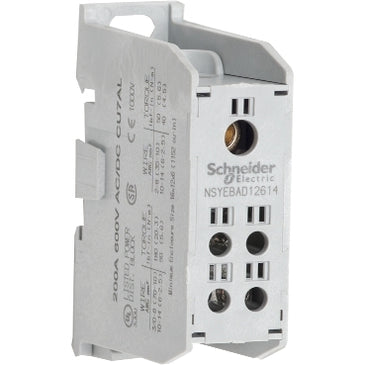

ENCLOSED POWER DISTRIBUTION BLOCK CU LUG, LINE 1, LOAD 4, 600V 200A CU
NSYEB power distribution blocks are enclosed IEC versions of our NEMA 9080 power distribution blocks, which are finger safe. The terminals of these power terminal blocks are finger safe from the front according to IP20. They are one pole modular units with an interlocking dovetail feature that enables ganging of the blocks to create multipole configurations according to application requirements. This block has a Short-Circuit Current Ratings (SCCR) of up to 100 kA with fuses and circuit breakers. Refer to the catalog for details on this. The lugs in these blocks are available with either copper or aluminum. This block has a tin plated copper lug. The line side lug of this block is rated to 200A at 600 V when copper wire is used. The line side terminal will accept 14 AWG to 3/0 AWG copper wires. The four load side terminals will accept 14 AWG to 2 AWG copper wires. This block can be mounted on 35 mm DIN rail. This block is 3.61 inches tall, 1.21 inches wide and 2.71 inches deep. This block is UL Listed, CSA cerified and RoHS compliant.Specifications
- Range of Product
- NSYEB
- Product or Component Type
- Power Distribution Block
- [Ue] rated operational voltage
- 600 V AC/DC
- Line Rated Current
- 200 A copper
- Mounting Support
- 35 mm DIN rail
- electrical connection
- Tin plated copper lugs
- number of terminals
- 1 line;4 load
- number of cables
- Line 1;AWG 14...AWG 3/0;copper;Load 4;AWG 14...AWG 2;copper
- short-circuit current
- 100 kA
- Material
- Thermoplastic block
- colour of enclosure
- Grey
- wire stripping length
- Load 0.69 in (17.53 mm) bottom;Line 0.88 in (22.35 mm);Load 0.69 in (17.53 mm) top
- connections - terminals
- Line lug 180 lbf.in (20.34 N.m) AWG 8...AWG 3/0 copper;Line lug 50 lbf.in (5.65 N.m) AWG 14...AWG 10 copper;Load lug 50 lbf.in (5.65 N.m) AWG 8...AWG 2 copper;Load lug 40 lbf.in (4.52 N.m) AWG 14...AWG 10 copper
- Height
- 3.61 in (91.69 mm)
- tightening torque
- Line 180 lb.in;AWG 8...AWG 3/0;copper;Line 50 lb.in;AWG 14...AWG 10;copper;Load 50 lb.in;AWG 8...AWG 2;copper;Load 40 lb.in;AWG 14...AWG 10;copper
- Width
- 1.21 in (30.73 mm)
- Depth
- 2.71 in (68.83 mm)
- Product Certifications
- CE;UL listed file E323110 CCN QPQS;CSA file 70361 class 6228 01
- dielectric strength
- 1000 V 0.11 in² (70 mm²) IEC 60947-7-1
- Ambient air temperature for operation
- -40…257 °F (-40…125 °C)
- Category
- 21713-IEC ENCLOSED POWER DISTR BLOCKS
- Discount Schedule
- CP1
- GTIN
- 785901500186
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.70 in (6.858 cm)
- Package 1 Width
- 1.30 in (3.302 cm)
- Package 1 Length
- 3.70 in (9.398 cm)
- Package 1 Weight
- 8.64 oz (244.94 g)
