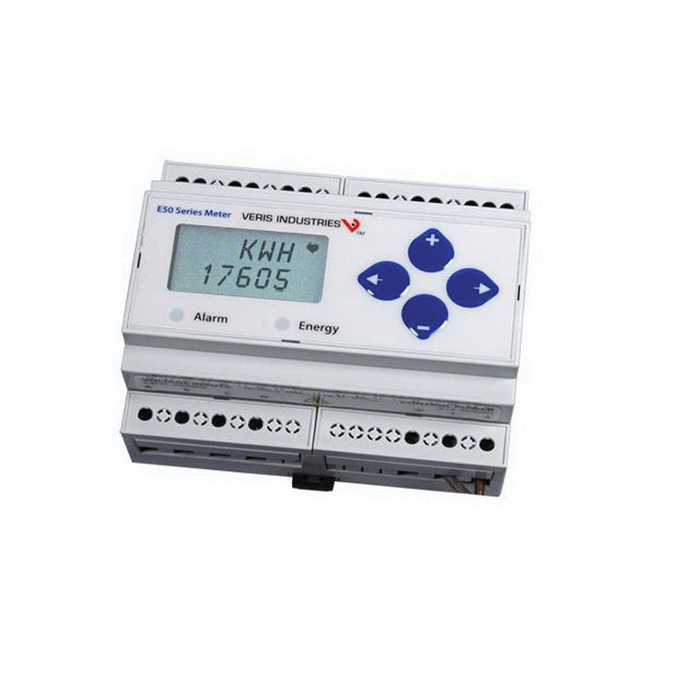

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to METSEEM3502

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D METSEEM3502 Documents

Datasheet More Info

Overview

Details for METSEEM3502

EM3500 BAC NET METER

The EM3500 series offer a three-phases DIN rail-mounted energy meters fitted for accurate cost allocation and sub-metering. EM35xx models are designed for use with Low Votage Current Transducers 1/3Volt or 1Volt output. Current input from 5A to 32000A, according to the LVCT configuration in the HMI, ANSI C12.20 0.2% accuracy, IEC 62053-22 class 0.2S. 2 pulse outputs to communicate active and reactive energy, and 1 normaly closed contact for alarm. Suitable for a 230V AC network, with a supply voltage range of 90V AC to 300V AC at 50Hz or 60Hz. Compliant with UL508, CSA 22.2 number 14-05 and EN 61010-1. Product dimensions are as follows: width 107 mm, depth 59 mm, height 91 mm.

Specifications

range: PowerLogic
range of product: PowerLogic EM3500
device short name: EM3502
Product or Component Type: Energy meter
metering type: Demand power P;Q;S;Peak demand power PM;QM;SM;Current I1;I2;I3;Iavg;Voltage U21;U32;U13;V1;V2;V3
poles description: 3P + N
type of measurement: Active and reactive power total;Active and reactive power per phase;Apparent power total;Apparent power per phase;Power factor total;Power factor per phase;Peak demand power;Current;Voltage;Frequency
Device Application: Partial meter;Sub billing
accuracy class: Class 0.2S power IEC 62053-22;Class 0.2S energy IEC 62053-22;Class 0.2S power ANSI C12.20;Class 0.2S energy ANSI C12.20
measurement accuracy: Power +/- 0.2 %;Energy +/- 0.2 %
input type: split core current transducer 0.333 V or 1 V
rated voltage: 90…347 V
Network Frequency: 60 Hz;50 Hz
Technology Type: Electronic
Display Type: Backlit LCD
measurement current: 5…32000 A
display digits: 5
information displayed: Status and alert;Communication with system;Input/output status;Error;Tx activity;Rx activity;Instant power per usage
tamperproof of settings: Protected by access code
communication port protocol: -
Communication Service: Total cumulated active energy;Total cumulated energy
data recording: Energy consumption logs
Demand intervals: Fixed or rolling block
local signalling: Red LED threshold reached;Green flashing LED output signal
Number of Outputs: 2 pulse;1 alarm output
output voltage: 30 V AC/DC
[Ue] rated operational voltage: 90...347 V AC 50/60 Hz between phase and neutral UL;156...600 V AC 50/60 Hz between phases UL;90...300 V AC 50/60 Hz between phase and neutral CE;125...300 V DC
power consumption in VA: 5 VA 347 V AC between phase and neutral);5 VA 600 V AC between phases)
power consumption in W: 3 W 300 V
ride-through time: 100 ms 120 V AC
Mounting Mode: Clip-on;By screws
Mounting Support: DIN rail
Standards: UL 508;CSA C22.2 No 14-05;IEC 61010-1
product certifications: CE IEC 61010;CULus UL 508
relative humidity: 0…95 %
ambient air temperature for operation: -22…158 °F (-30…70 °C)
Ambient Air Temperature for Storage: -40…185 °F (-40…85 °C)
Color: Dark grey
9 mm pitches: 12
Width: 4.21 in (107 mm)
Height: 3.58 in (91 mm)
Depth: 2.32 in (59 mm)
Category: 09798-POWERLOGIC EM3500 SERIES
Discount Schedule: PL1
GTIN: 3606481969255
Returnability: No
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.58 in (9.1 cm)
Package 1 Width: 4.21 in (10.7 cm)
Package 1 Length: 2.32 in (5.9 cm)
Package 1 Weight: 8.00 lb(US) (3.629 kg)
