LVCT00202S | LVCT 200A - 0.333 V Output - Split Core CT - 31 mm x 100 mm | Square D by Schneider Electric

Square D | LVCT00202S

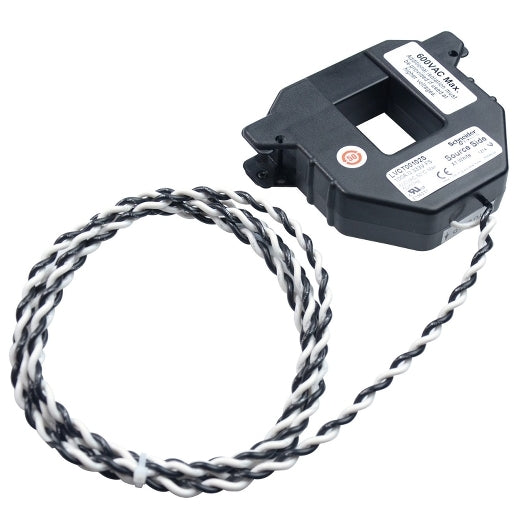

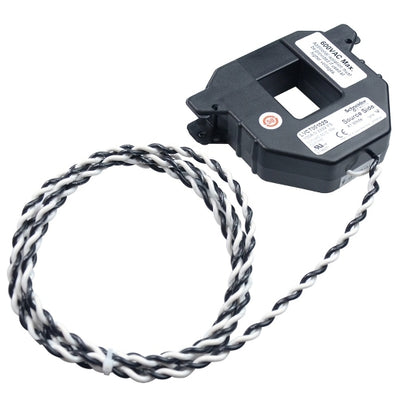

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LVCT00202S

Documents and manuals

Square D LVCT00202S Documents

Overview

Details for LVCT00202S

LVCT 200A - 0.333 V Output - Split Core CT - 31 mm x 100 mm

This low-voltage split-core current transformer is part of PowerLogic BCPM (Branch Circuit Power Meter). It is Ideal for retrofit applications with Schneider Electric energy meters which accept low voltage current transducer input It is rated for a 200A circuit. 0.333 V output, size 2. Split core opening is 31 mm x 100 mm.

Specifications

Range
PowerLogic
device short name
LVCT
Product or component type
Current transformer
Output voltage
0.333 V
Electrical connection
Cable: 1.8 m (AWG 18) 600 V
Product destination
BCPM
BCPMSC
Enercept
IEM3000
EM3500
EM4200
EM4900
accessory / separate part category
Measurement accessory
current transformer type
Split core balance
[In] rated current
200 A
Network frequency
50/60 Hz
Range compatibility
PowerLogic (PowerLogic BCPM) BCPMA multi-circuit energy meter
PowerLogic (PowerLogic BCPM) BCPMB multi-circuit energy meter
PowerLogic (PowerLogic BCPM) BCPME multi-circuit energy meter
PowerLogic (PowerLogic BCPMSC) BCPMSCA multi-circuit energy meter
PowerLogic (PowerLogic BCPMSC) BCPMSCB multi-circuit energy meter
PowerLogic (PowerLogic BCPMSC) BCPMSCE multi-circuit energy meter
PowerLogic (PowerLogic EM3500) EM3502 energy meter
PowerLogic (PowerLogic EM3500) EM3550 energy meter
PowerLogic (PowerLogic EM3500) EM3555 energy meter
PowerLogic (PowerLogic EM3500) EM3560 energy meter
PowerLogic (PowerLogic EM3500) EM3561 energy meter
PowerLogic (PowerLogic EM4200) EM4235 energy meter
PowerLogic (PowerLogic EM4200) EM4236 energy meter
PowerLogic (PowerLogic EM4900) EM4904 multi-circuit energy meter
PowerLogic (PowerLogic EM4900) EM4908 multi-circuit energy meter
PowerLogic (PowerLogic EM4900) EM4914 multi-circuit energy meter
PowerLogic (PowerLogic EM4900) EM4928 multi-circuit energy meter
Acti 9 (Acti9 iEM3000) iEM3455 energy meter
Acti 9 (Acti9 iEM3000) iEM3465 energy meter
Measurement accuracy
1 % 10...100 %
Relative humidity
95 %
Ambient air temperature for operation
-15…60 °C
Ambient air temperature for storage
-40…70 °C
Width
31 mm internal:
121 mm external:
Depth
30 mm
Height
30 mm internal:
100 mm external:
Net weight
0.34 kg
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
10.2 cm
Package 1 Width
21.0 cm
Package 1 Length
25.4 cm
Package 1 Weight
590.91 g
Unit Type of Package 2
S04
Number of Units in Package 2
7
Package 2 Height
30.0 cm
Package 2 Width
40.0 cm
Package 2 Length
60.0 cm
Package 2 Weight
5.582 kg
Warranty
18 months
