JDL36200 | PowerPact J-Frame breaker, thermal-magnetic, 200 A, 3P, 14 kA at 600 VAC | Square D by Schneider Electric
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: Square DSKU: JDL36200

Web Price:

$1,582.74
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

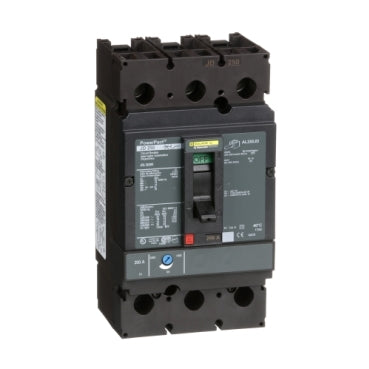

JDL36200 | PowerPact J-Frame breaker, thermal-magnetic, 200 A, 3P, 14 kA at 600 VAC | Square D by Schneider Electric

Square D | JDL36200
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to JDL36200

Documents and manuals

Square D JDL36200 Documents

Overview

Details for JDL36200

PowerPact J-Frame breaker, thermal-magnetic, 200 A, 3P, 14 kA at 600 VAC

PowerPact J-Frame breaker, Thermal-magnetic
  • Line Rated Current :  200A
  • Number of Poles : 3P
  • Interrupt Rating : 18 kA 600 V AC
  • Rated operational voltage: 600 V AC, 250 V DC.
  • Trip Unit Type : Thermal-magnetic
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 200A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

range
PowerPact
product name
PowerPact J
Product or Component Type
Circuit breaker
Device Application
Distribution
Line Rated Current
200 A
Number of Poles
3P
Control Type
Toggle
breaking capacity code
D
breaking capacity
25 kA 240 V AC 50/60 Hz UL 489;18 kA 480 V AC 50/60 Hz;14 kA 600 V AC 50/60 Hz;20 kA 250 V DC
[Ue] rated operational voltage
600 V AC 50/60 Hz IEC 60947-3
Network Frequency
50/60 Hz
[Ics] rated service breaking capacity
25 kA 220/240 V AC 50/60 Hz IEC 60947-2;18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2;14 kA 500/525 V AC 50/60 Hz IEC 60947-2;20 kA 250 V DC IEC 60947-2;20 kA 500 V DC IEC 60947-2
[Uimp] rated impulse withstand voltage
8 kV IEC 60947-2
trip unit technology
Thermal-magnetic
magnetic tripping current
2000 A
magnetic hold current
1000 A
continuous current rating
80 %
[Ui] rated insulation voltage
750 V IEC 60947-2
Protection Type
Overload protection;Short-circuit protection
suitability for isolation
Yes IEC 60947-2
utilisation category
Category A
AWG gauge
AWG 3/0...350 kcmil aluminium/copper terminals
local signalling
Switched off (OFF) 1 trip indicator green)
mounting mode
Unit mount lug)
Mounting Support
Lug
electrical connection
Lugs line;Lugs load
terminal identifier
AL250JD
long time pick-up adjustment range
0.25...1 x In
tightening torque
221.27 lbf.in (25 N.m) 0.15…0.29 in² (95…185 mm²) (AWG 3/0...350 kcmil)
number of slots
2 auxiliary switch OF plug-in);1 alarm switch SD plug-in);1 overcurrent trip switch SDE plug-in);1 voltage release MN or MX plug-in)
Power wire stripping length
0.98 in (25 mm)
Height
7.52 in (191 mm)
Width
4.09 in (104 mm)
Depth
3.39 in (86 mm)
Net Weight
5.29 lb(US) (2.4 kg)
communication interface
Modbus;Ethernet
circuit breaker application
HACR rated
quality labels
CE
Standards
UL;CSA;NEMA;NOM-003-SCFI-2000;IEC 60947-2
product certifications
UL;CSA;NOM
IP degree of protection
Front cover IP40
pollution degree
3 IEC 60947-1
Ambient air temperature for operation
28…158 °F (-2…70 °C)
Ambient Air Temperature for Storage
-58…185 °F (-50…85 °C)
operating altitude
< 6561.68 ft (2000 m) without derating;5000 m with derating
Category
01110-HD;JD UNIT MT BREAKER/SWITCH
Discount Schedule
DE2
GTIN
785901955856
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
5.70 in (14.478 cm)
Package 1 Width
7.50 in (19.05 cm)
Package 1 Length
8.60 in (21.844 cm)
Package 1 Weight
4.80 lb(US) (2.177 kg)
Warranty
18 months
